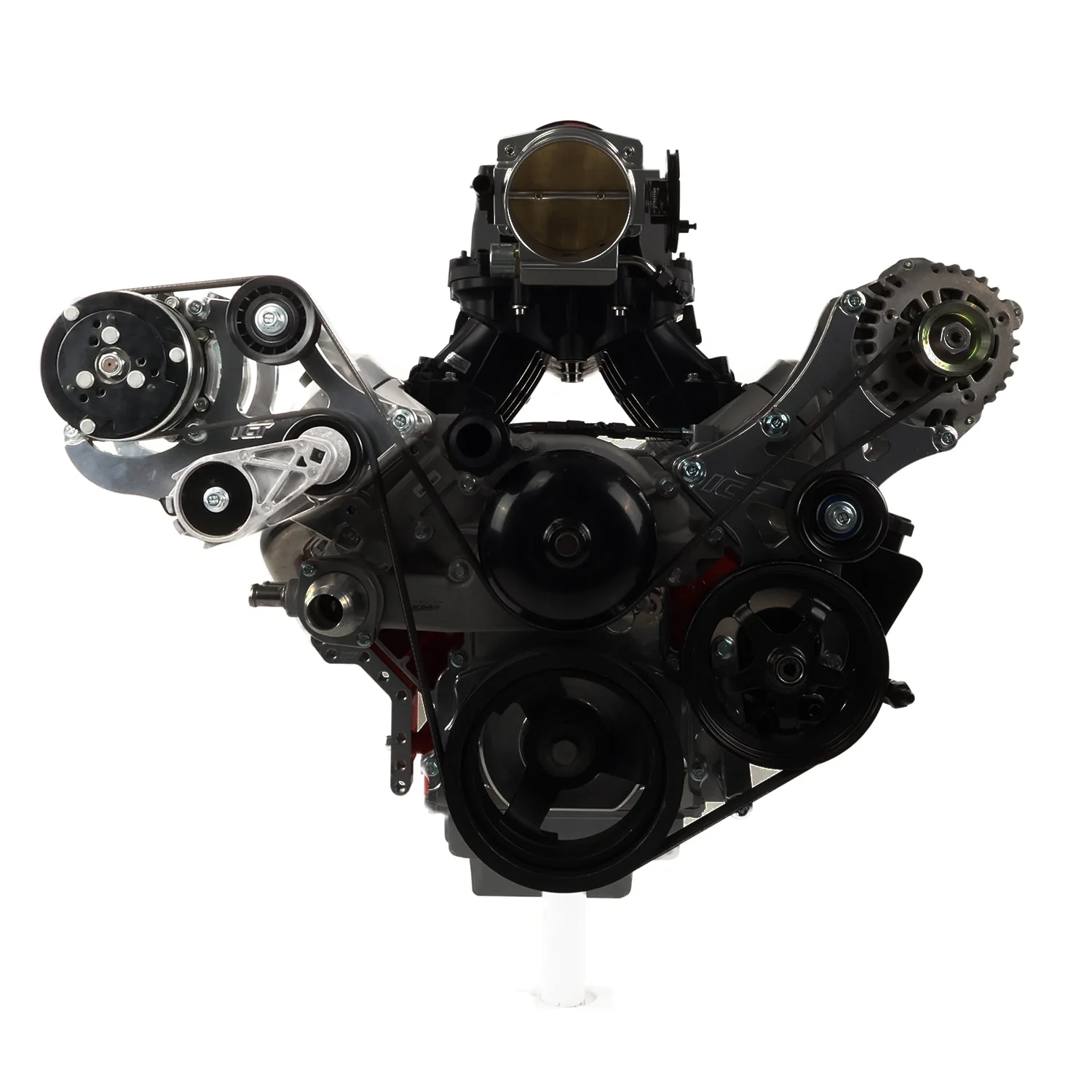

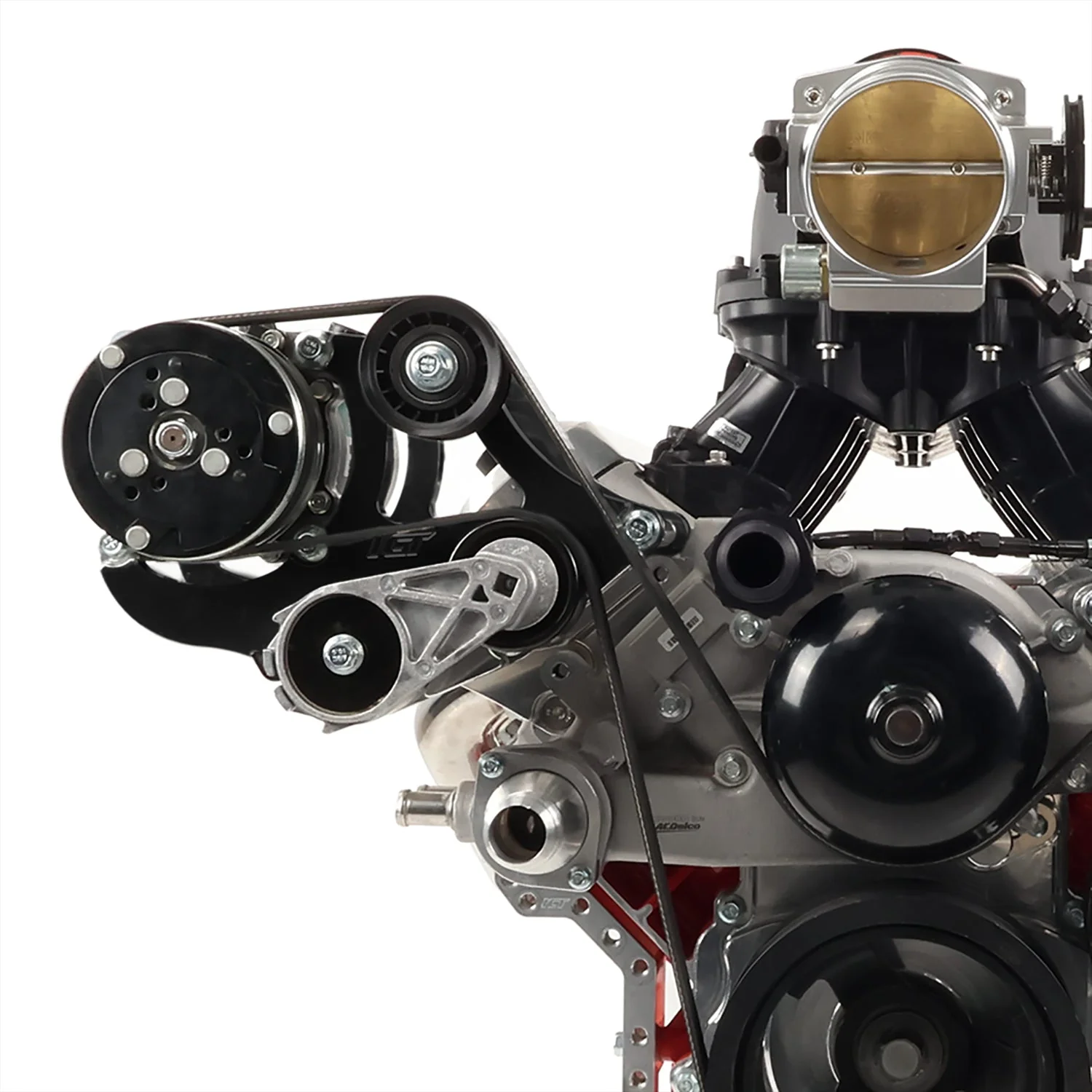

Heavy Duty LS Sanden 508 A/C Compressor Bracket Kit

Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)

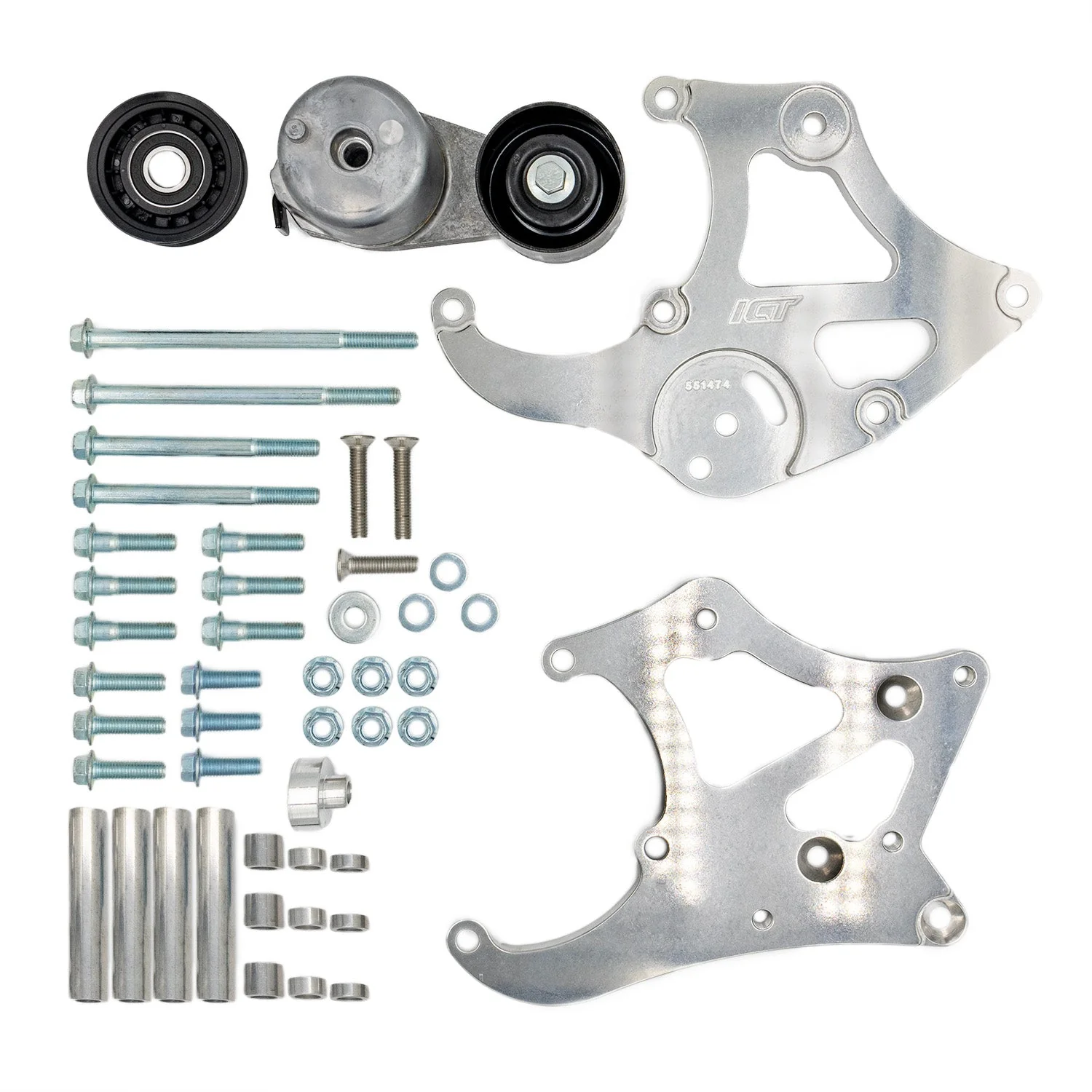

Includes: belt tensioner, A/C compressor bracket, idler pulley, and mounting hardware
Compatible A/C compressors: Sanden 508 (VTA-04808-VMA), Sanden 709 (VTA-04709-VMA)
Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
Compatible with all GM LS series engines and works with any water pump (Corvette/Camaro water pumps require spacers)

Compatible with (based on vehicle 3D scans by ICT)

Chevrolet Bel Air 55-57
Chevrolet Camaro 67-69
Chevrolet Chevelle 64-72
Chevrolet Impala 65-70
Chevrolet Trucks 60-72

Compatible with 1130K6 belt (113 inch) with OEM truck alternator/power steering bracket. If the idler pulley on A/C bracket is removed for clearance, then use 1098K6 belt. *This bracket does NOT fit or use the factory LS vehicle a/c compressors Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part#

Belt lengths when used with:

551519 988K6 with 105amp alt
551577 940K6 with 105amp alt
551668 755K6 with 105amp alt
