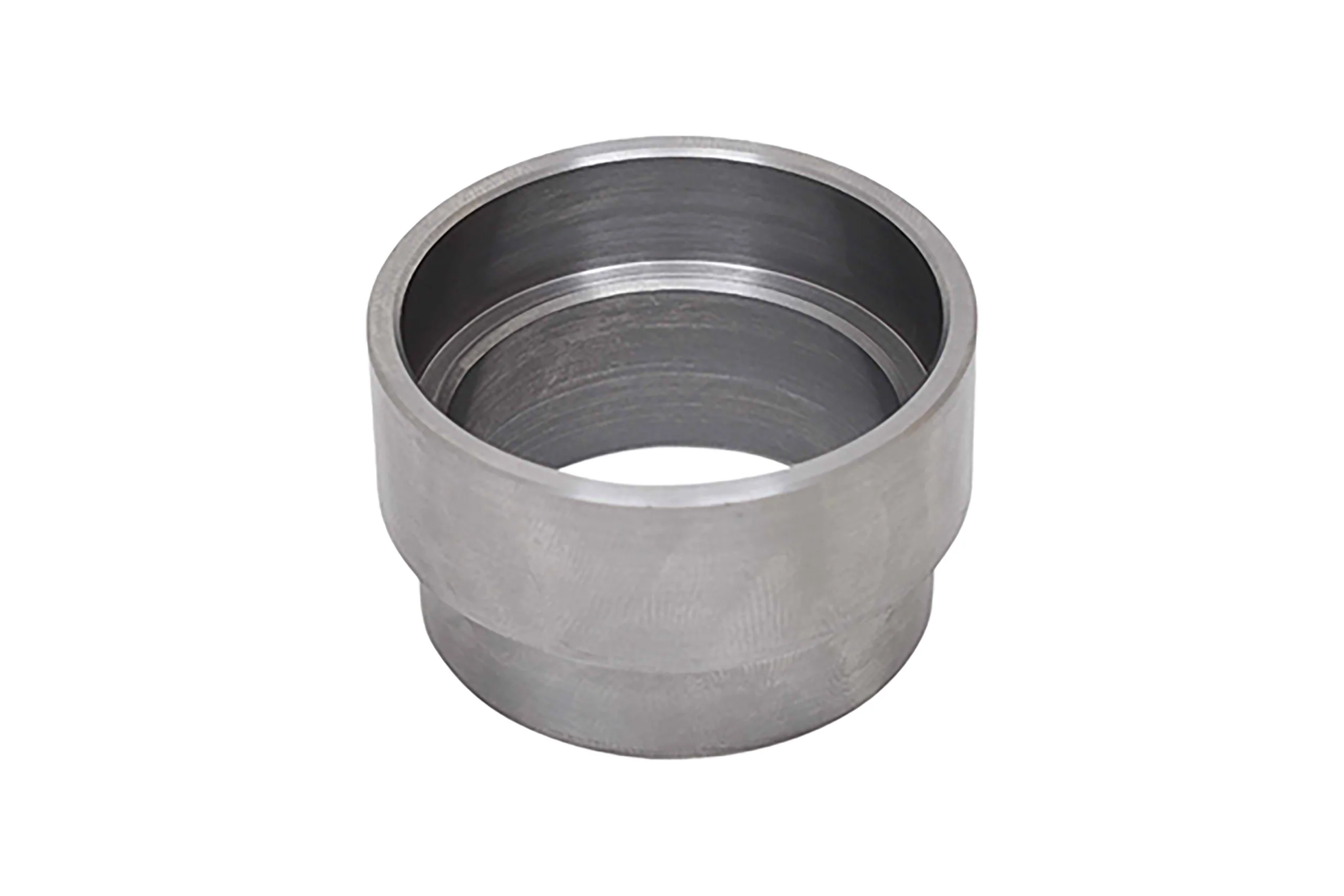

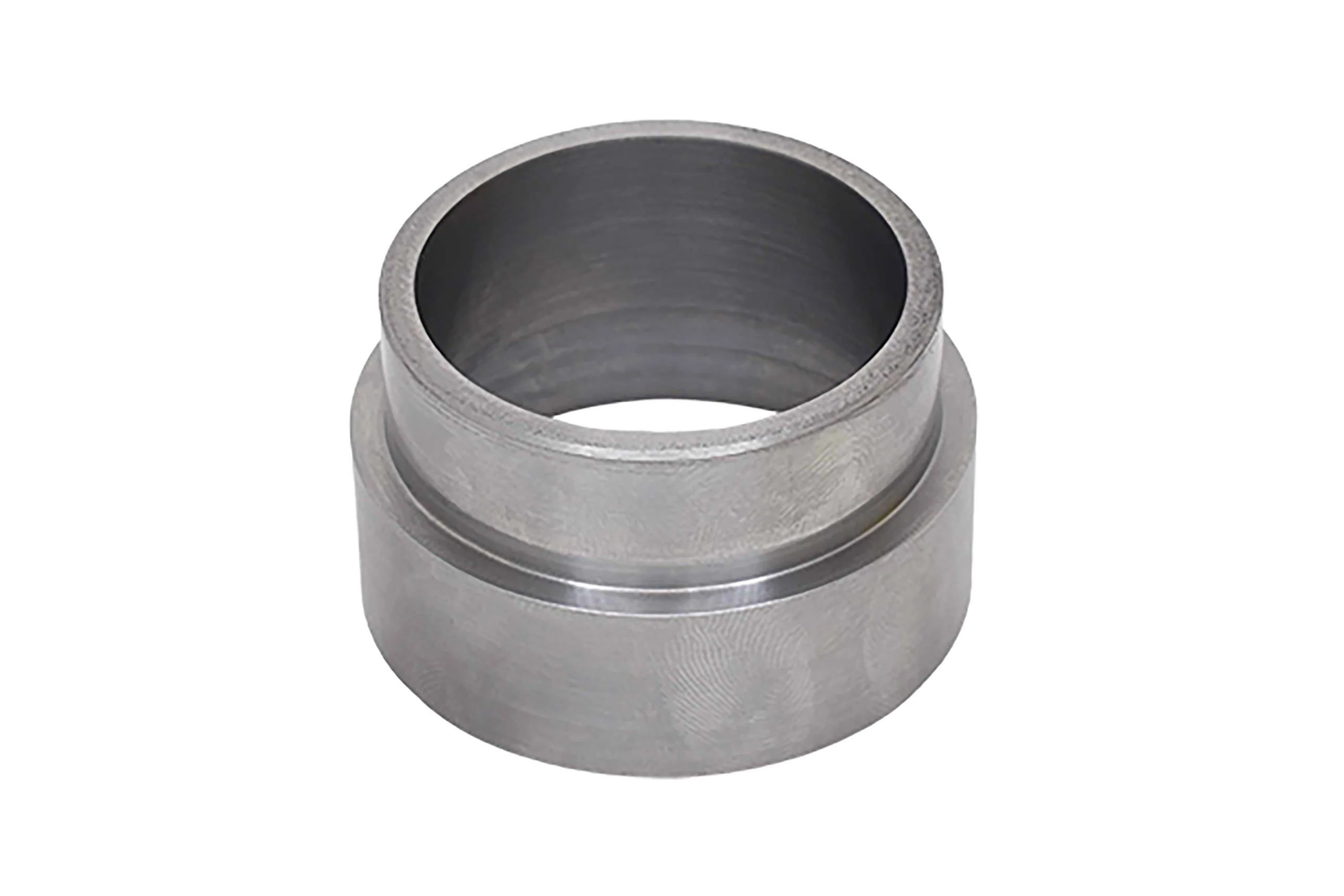

.125" Extended Length LS / LT Swap TH350 TH400 to LS1 Crankshaft Hub Adapter

1/8" Extended Length LS/LT Crankshaft Hub Adapter for Torque Converter.

Adapts Powerglide, TH400, 4L80E, TH350, 2004R, 700R4, 4L60, 4L60E (from Non LS engine) torque converter snout to LS/LT

• .125" extended length for use with .125" thick motor plates

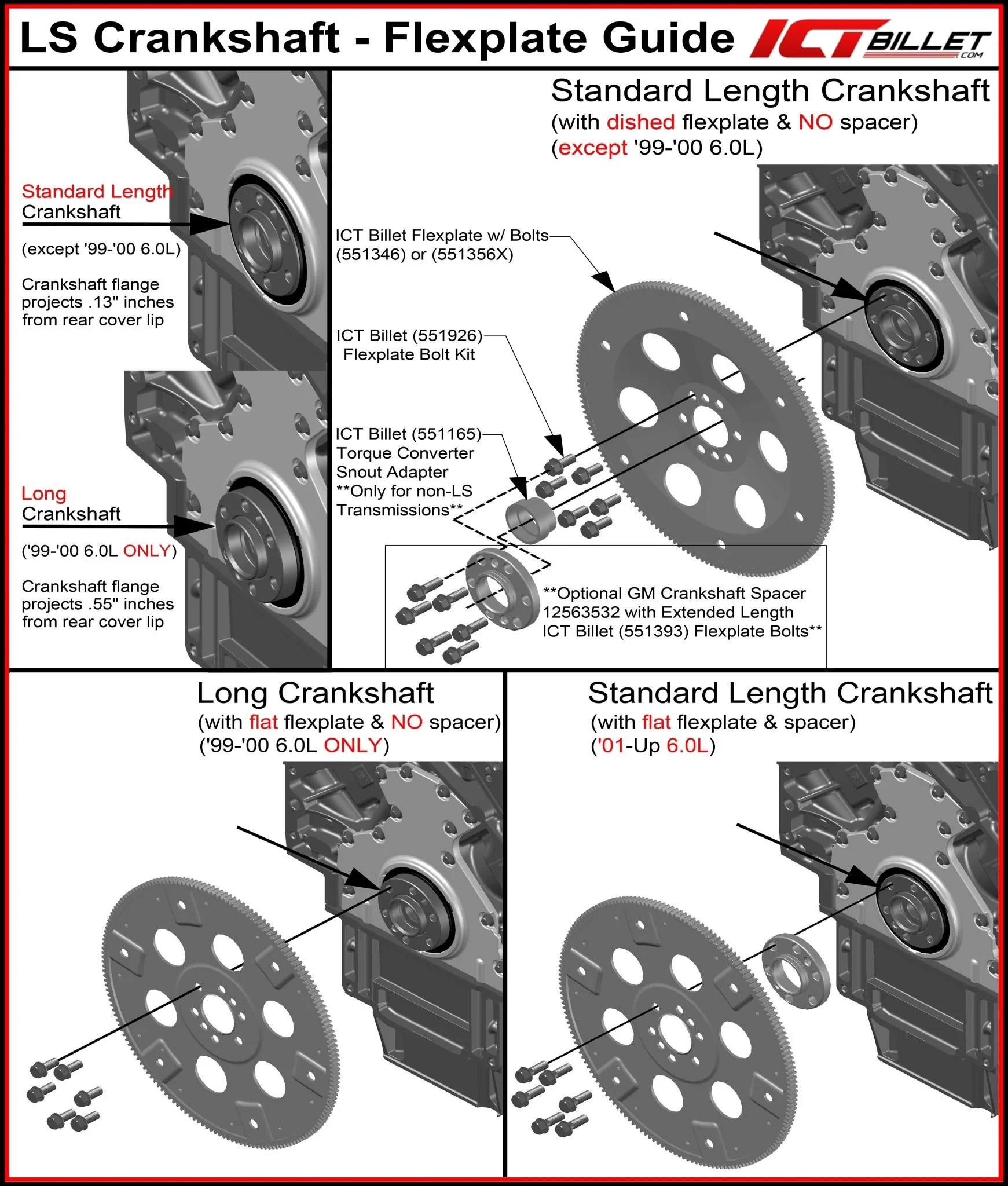

• See our LS/LT Crankshaft and Flexplate guide to determine where to place your crankshaft hub adapter
• Made in Wichita, Kansas from USA produced steel
• Compatible with all LS and LT series engines Gen 3, 4, 5 (except 99-00' 6.0L does not require this.)
• Includes: 1 adapter ring (inserts into rear of crankshaft)

***if installing a 6.0L engine from a 1999 or 2000 model then this part is not required. All other engines and years must use a crank adapter for any transmission that did not come factory behind an LS engine. Also a flex plate will be required due to the bolt pattern being different (use 551356, 551346, or re-drill your flex plate for the correct torque converter pattern)

Compatible with LOCTITE® 680 for slip fit components
