Camaro/CTS-V LT4 Supercharger to LS1 Cathedral Port Head Adapter Kit

Camaro/CTS-V LT4 Supercharger to LS Cathedral Port Head Adapter Kit

Compatible with 2017-2024 LT4 Camaro or CTS-V superchargers only

• Aluminum parts are all made in Wichita, Kansas from 6061-T6, USA produced, billet (except Holley fuel rails)

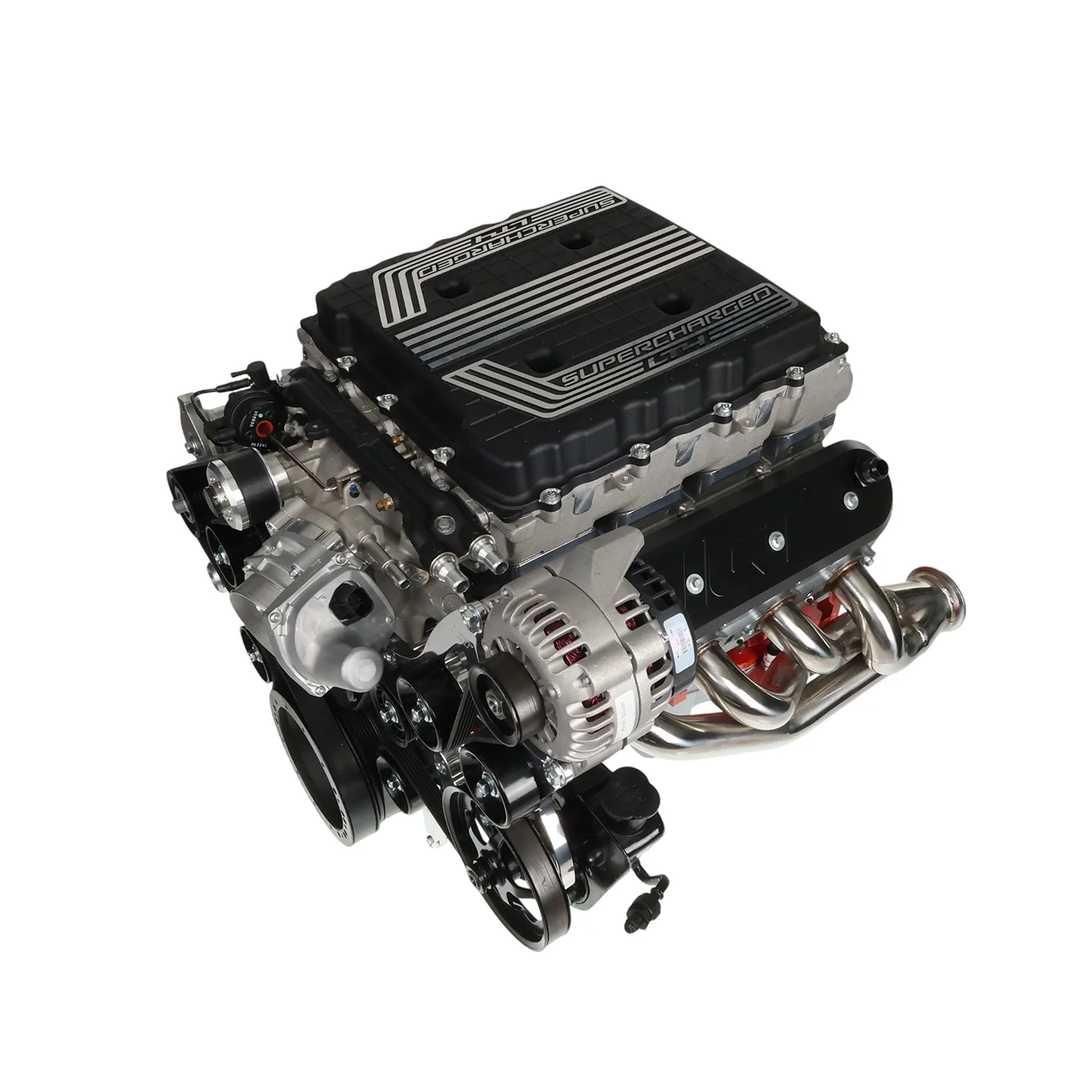

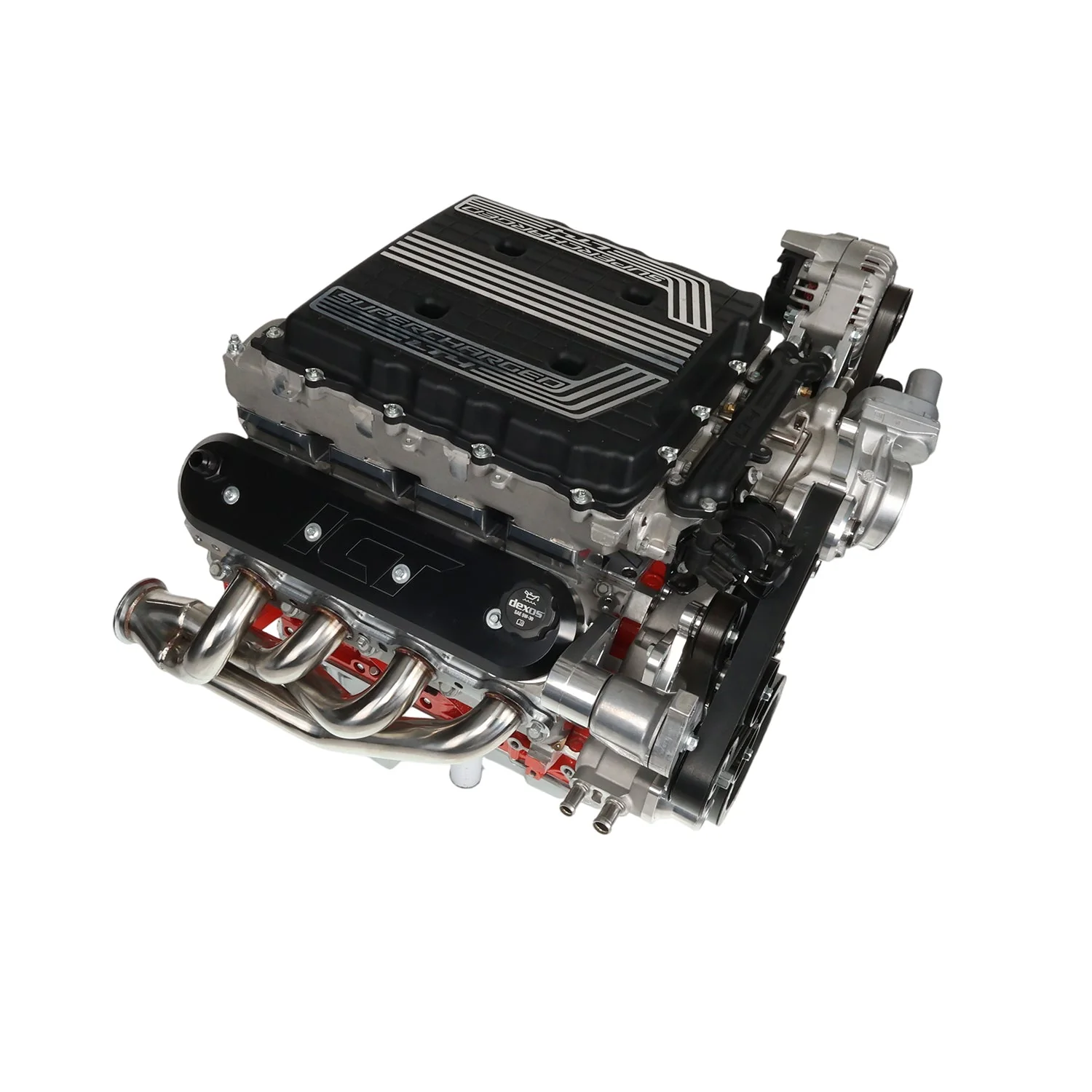

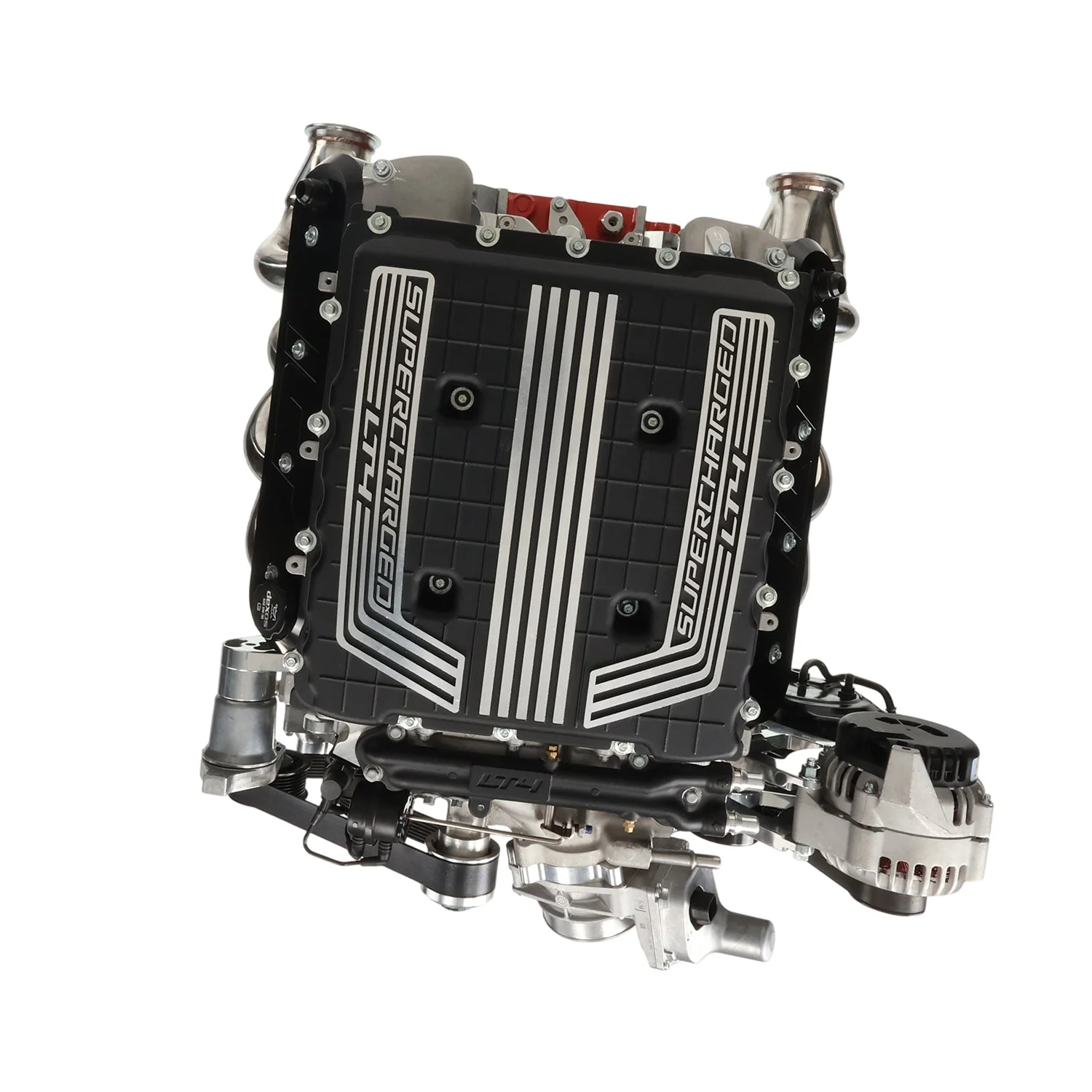

• Measures 10.125" from top of engine block to top of Camaro supercharger lid (13.0" for Escalade V supercharger)

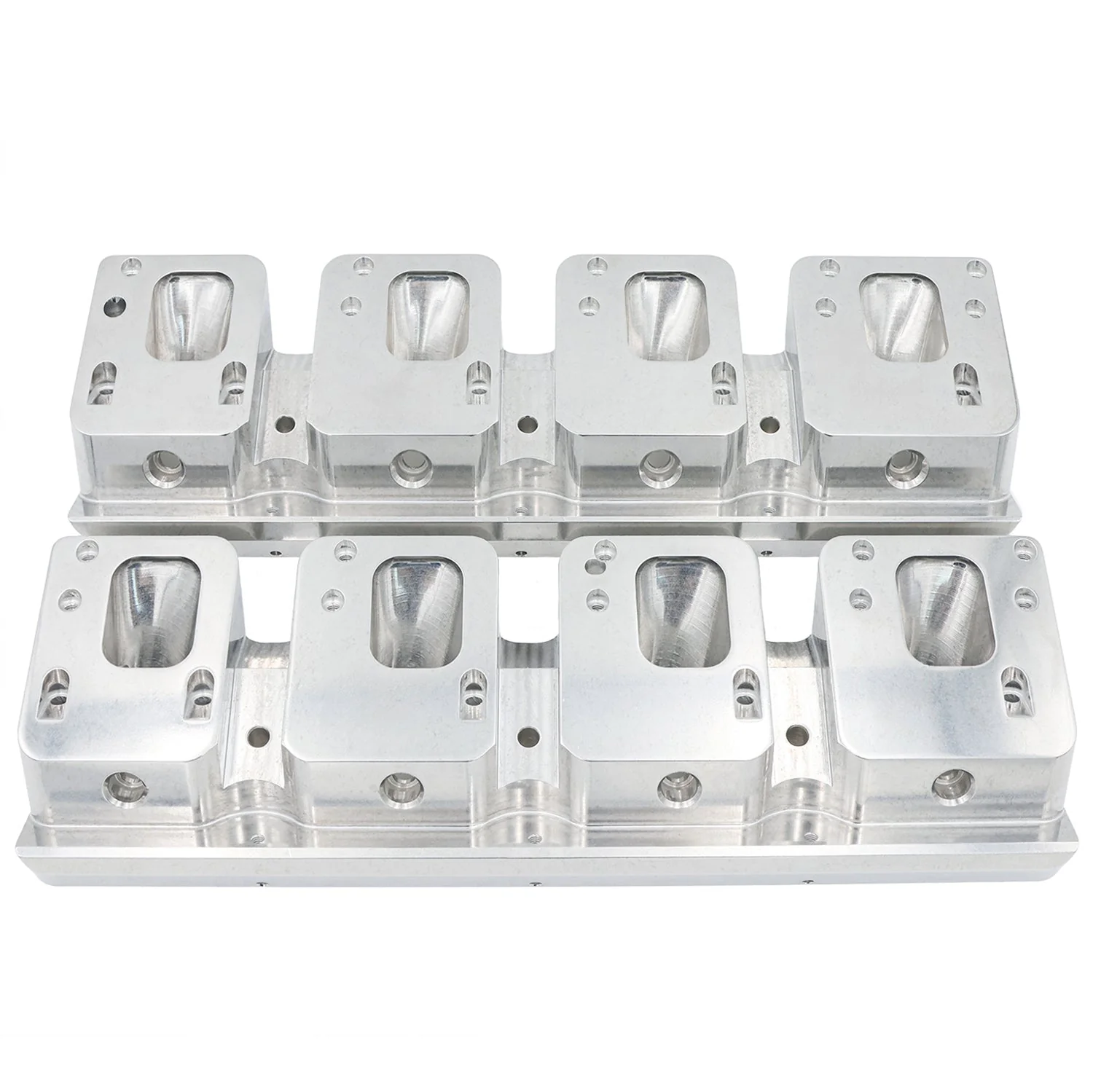

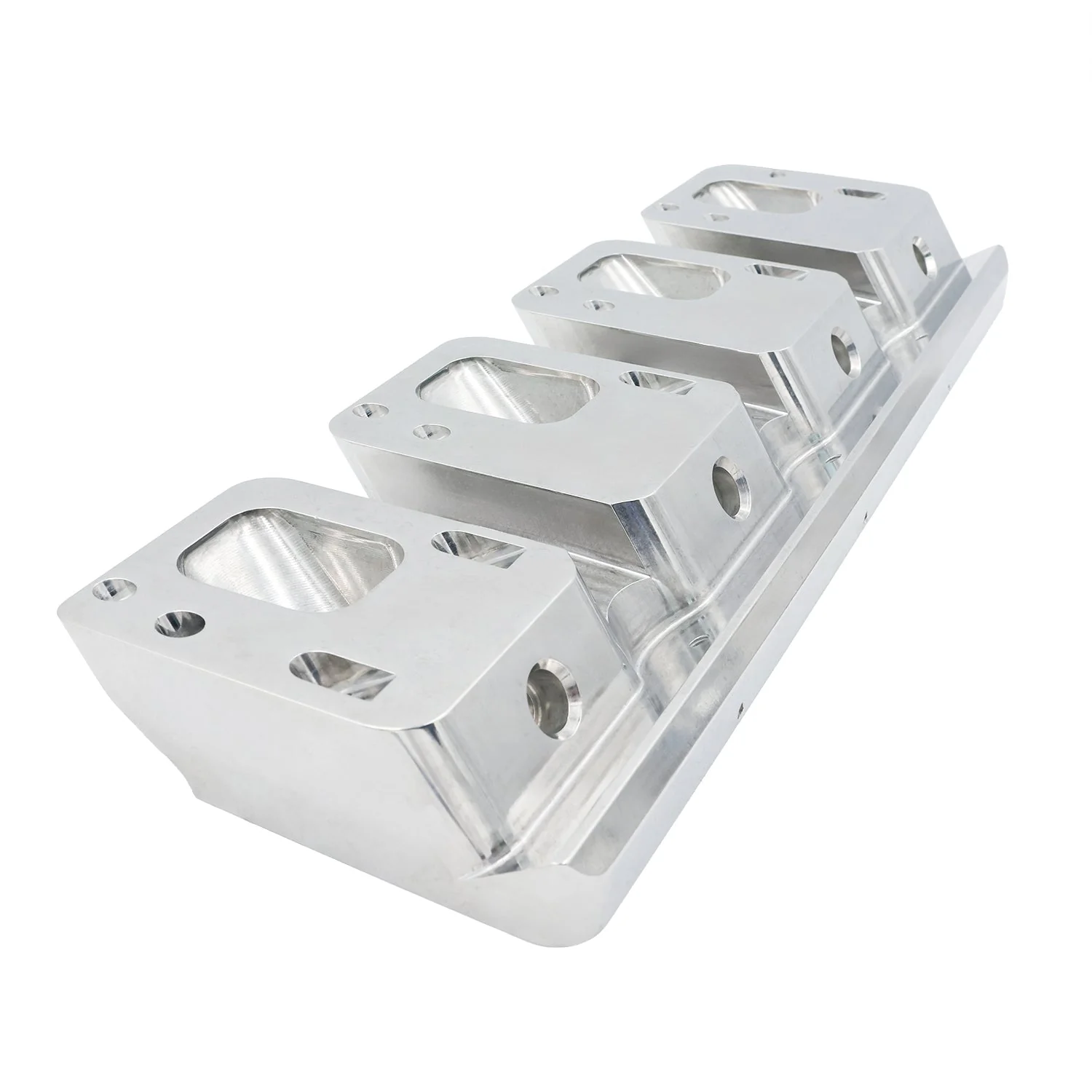

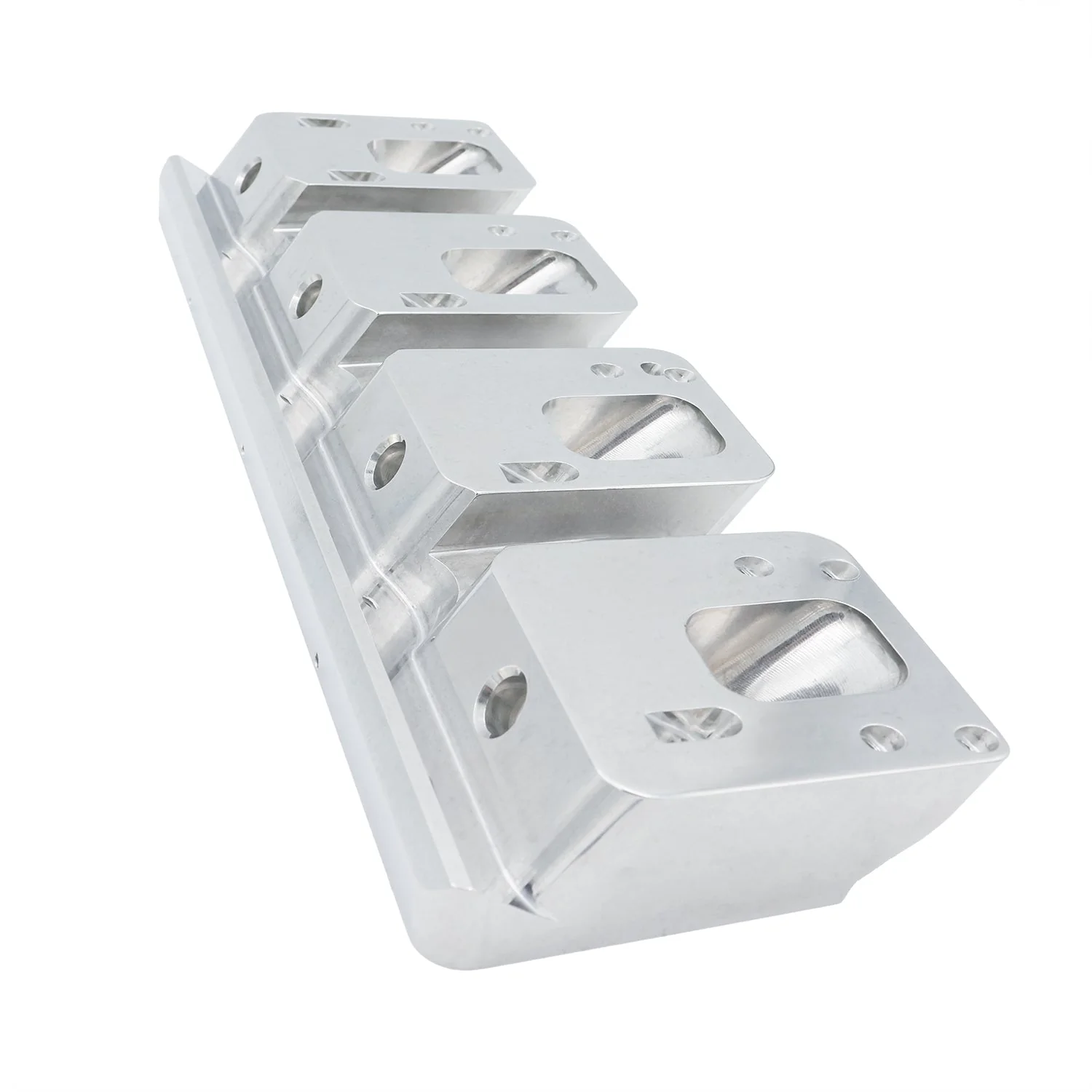

• These LT4 supercharger adapters bolt directly on to any LS Cathedral port head (LS1, LS2, LQ4, LQ9, and many others) and includes bracketry and fuel rails to utilize LS3 length injectors and an LS 4-bolt throttle body adapter

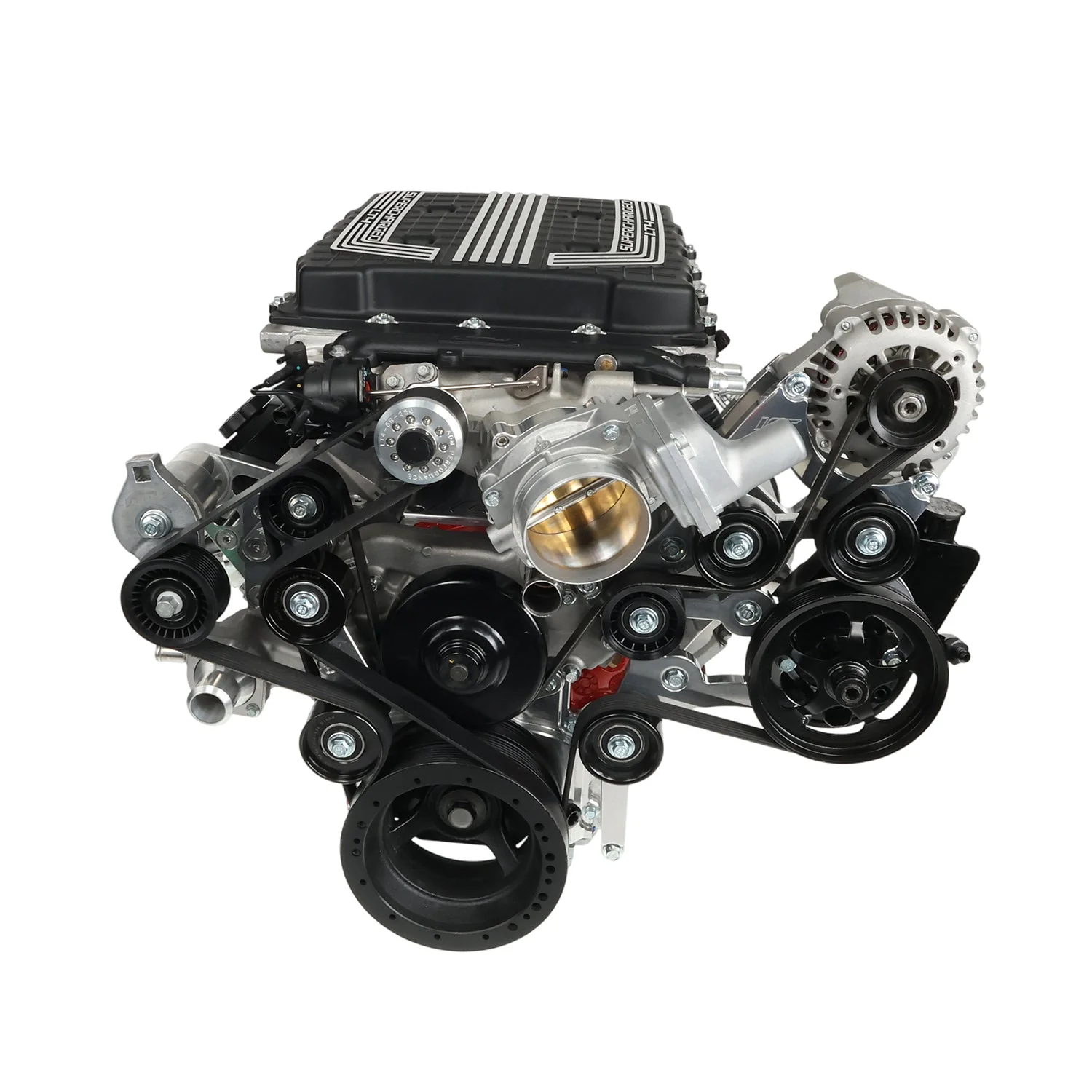

• This LS3 style injection system mounts in the valley under the supercharger for a clean, sleek look
• When installing- The new supercharger hub will press on, until it sits in the inner race of the snout bearing

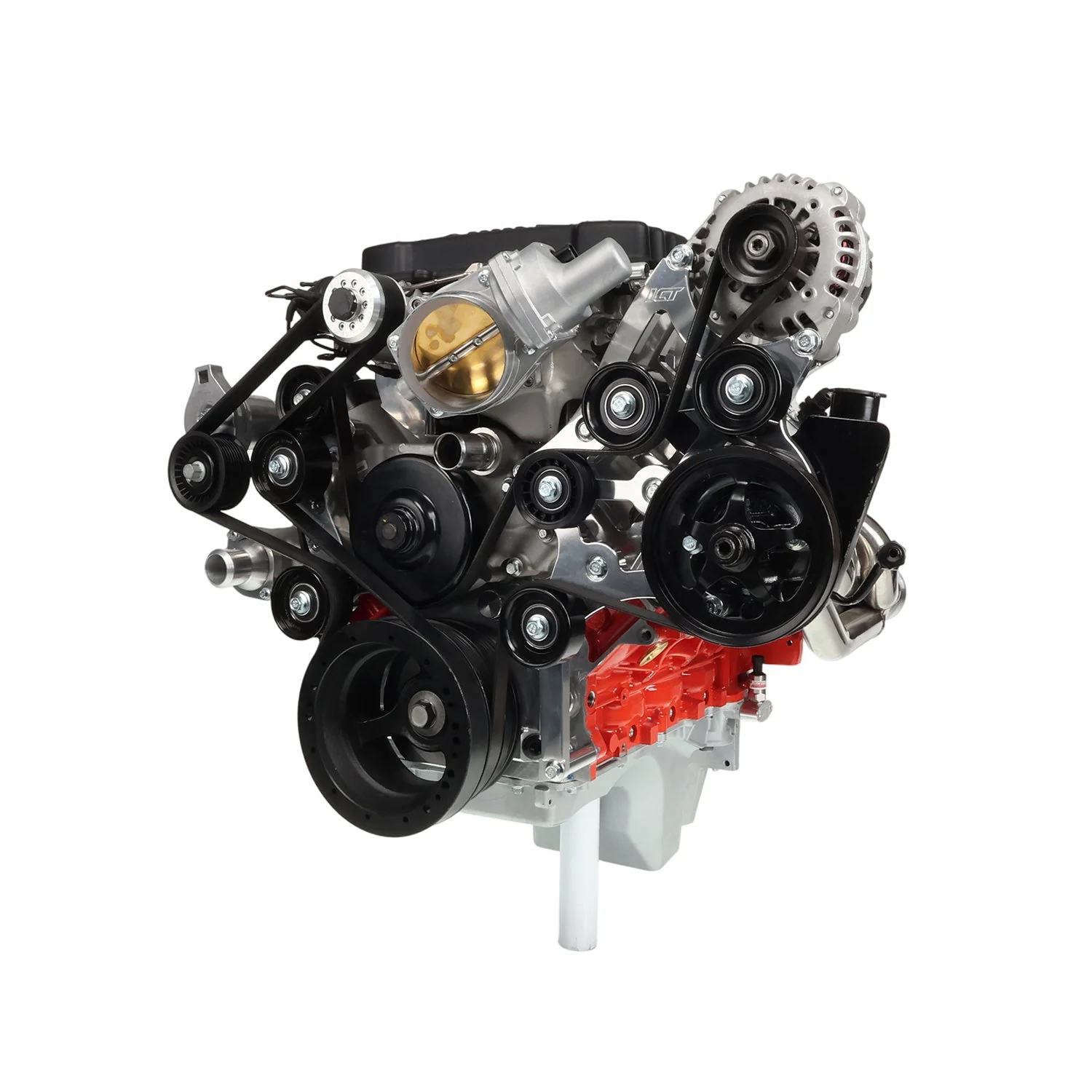

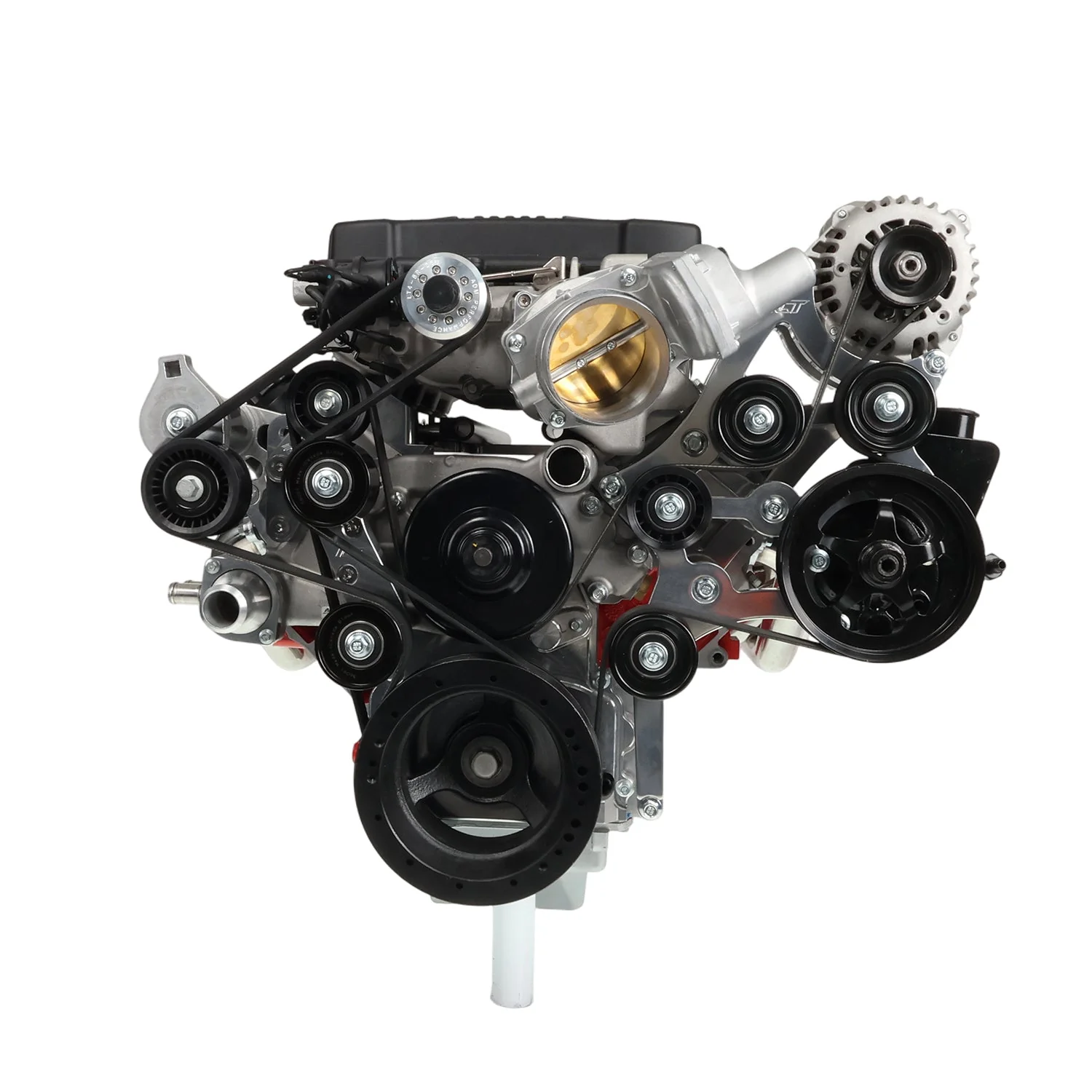

• Compatible with LSA balancer (ICT #BAL301) and designed for dual belt setup: 8-rib supercharger belt + separate 6-rib accessory belt in Corvette (-1) spacing

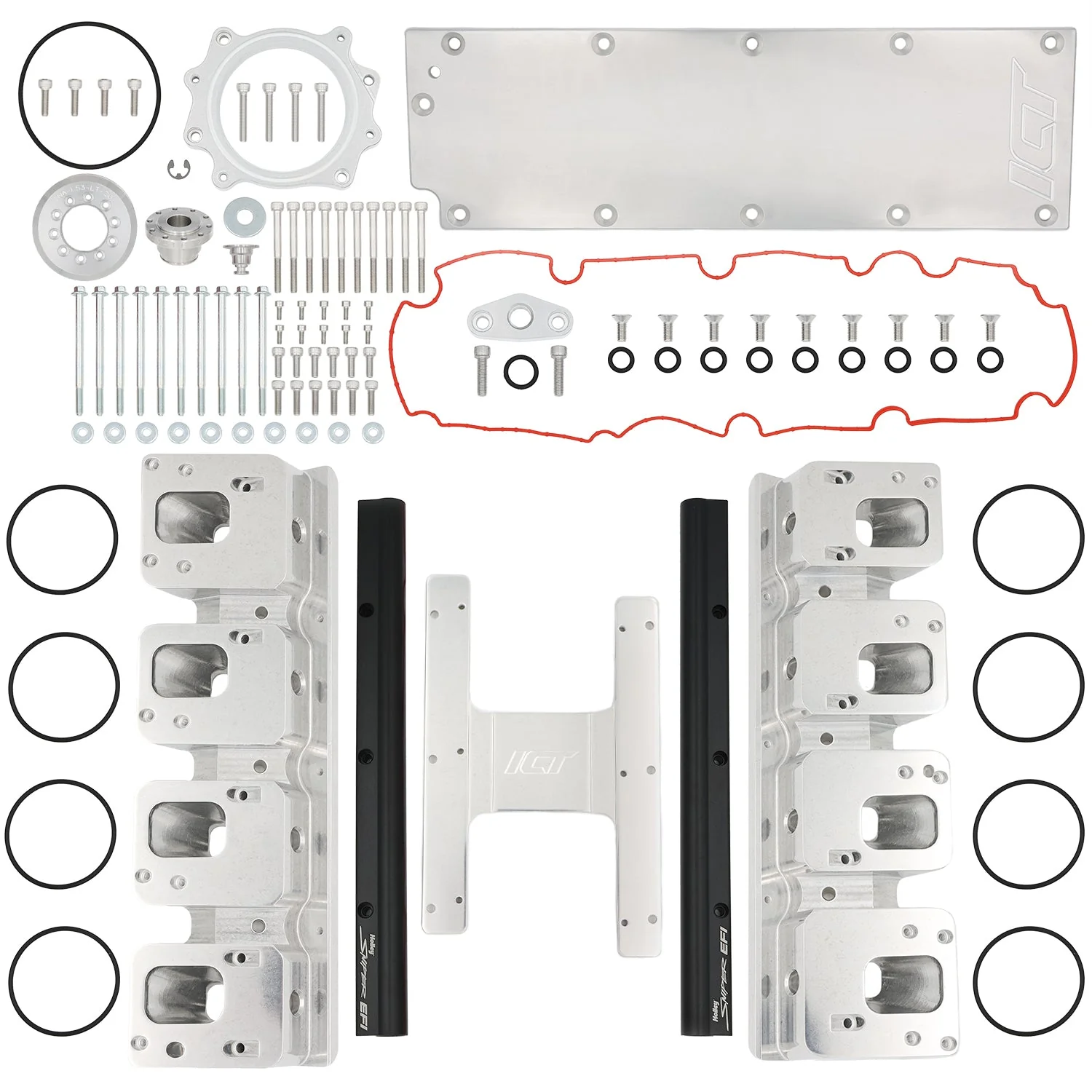

Full kit includes 2 intake adapters, fuel rail mounting bracket, -8orb fuel rails, LS throttle body rotation adapter, LT4 2.5" supercharger pulley and hub, billet gen 4 LS valley pan with oil pressure sensor adapter, and all seals and mounting hardware
