LS Truck Low Mount 6-Rib Sanden 7176 A/C Compressor Bracket

LS Truck 6-Rib Sanden 7176 A/C Compressor Bracket Kit

Fits LSX 4.8L 5.3L 6.0L 6.2L Engines

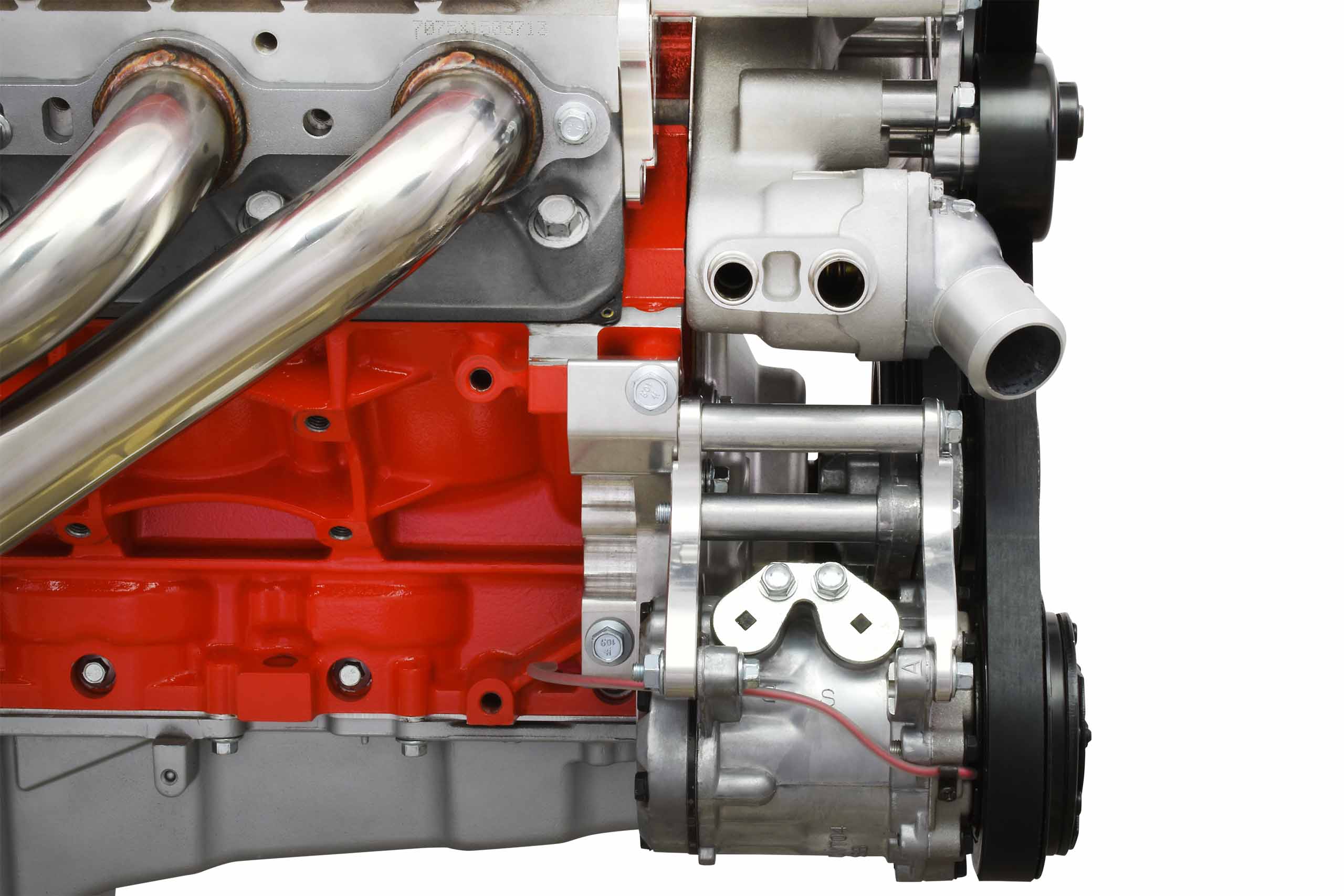

• Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

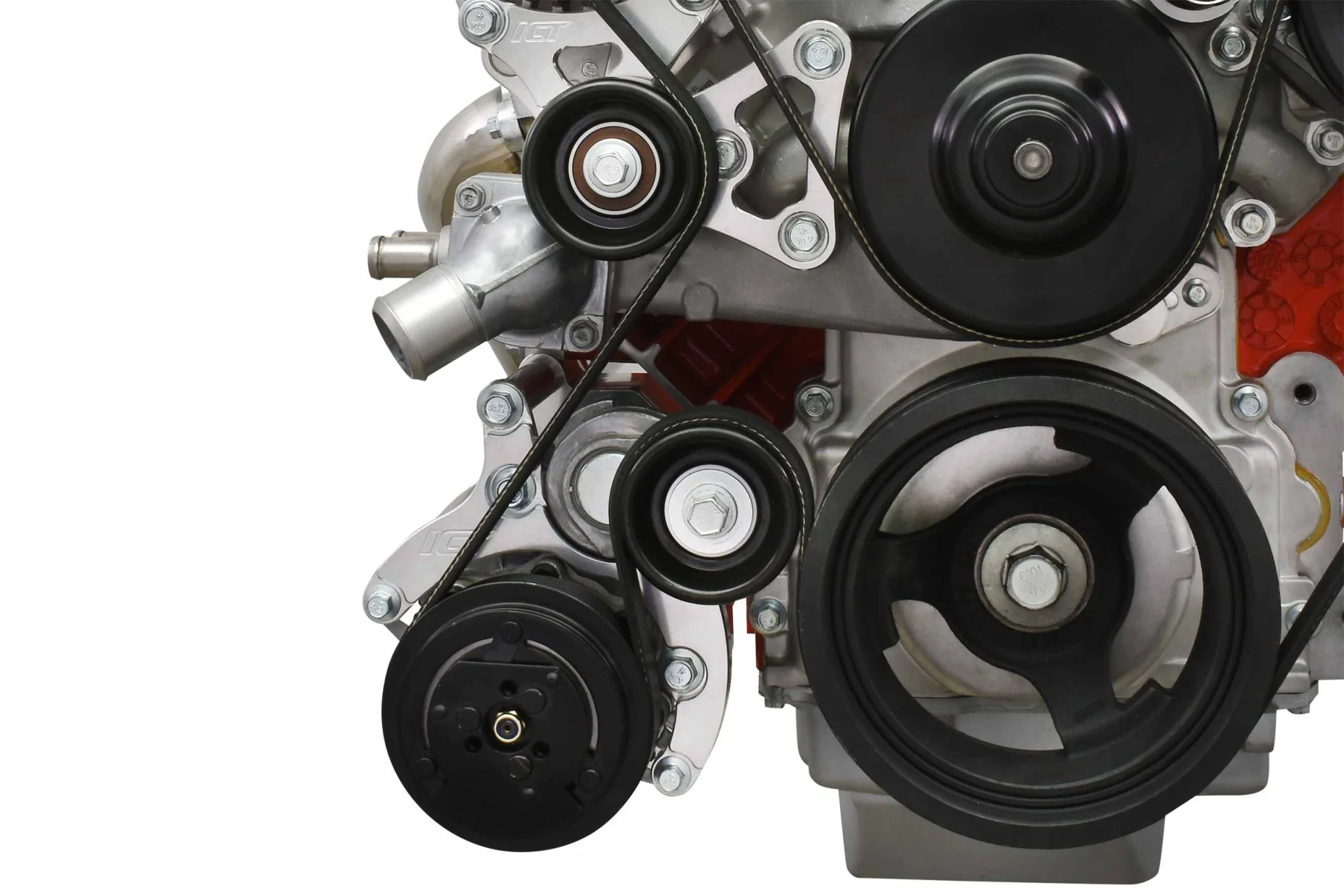

• Aligns compressor with the main, 6-rib belt on the crankshaft pulley
• Primarily used when mounting an alternator in front of passenger cylinder head with non-integrated belt tensioner.
• Compatible with all LS series engines with Truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
• Compatible with all truck-spacing water pumps - Gen 3 & 4 truck, LS3/L99 Camaro, and LS1 Camaro (w/ 551690-71 spacers)
• Compatible with factory small block Chevy motor mount location using ICT Billet LS swap plates (ICT# 51628 and 51928)

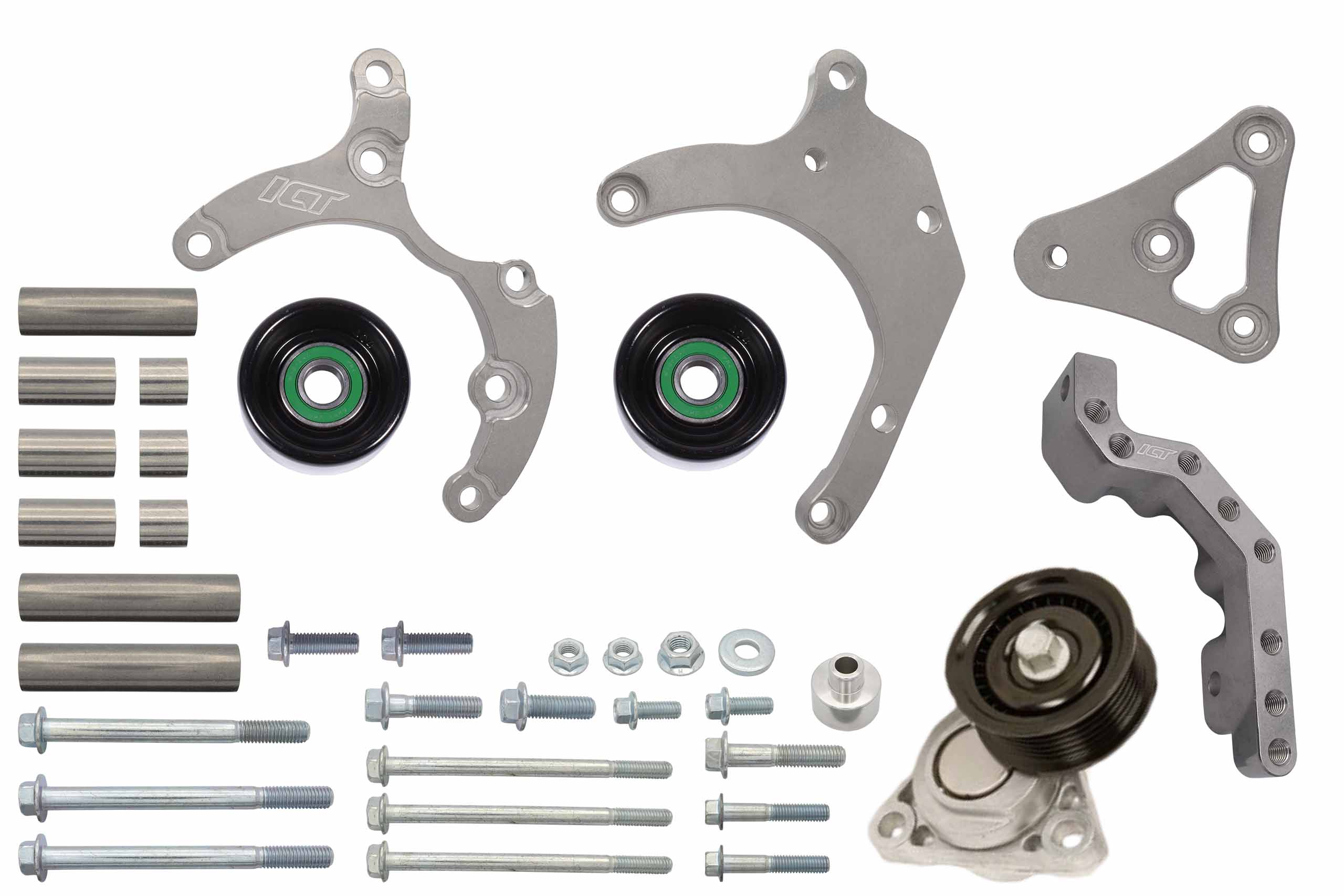

• Includes: Brackets, Idler Pulleys, Hardware, and Belt Tensioner
• Made from aerospace-grade billet aluminum
• Made in the USA



*NOTE THIS DOES NOT FIT FACTORY STYLE LS VEHICLE A/C COMPRESSORS
