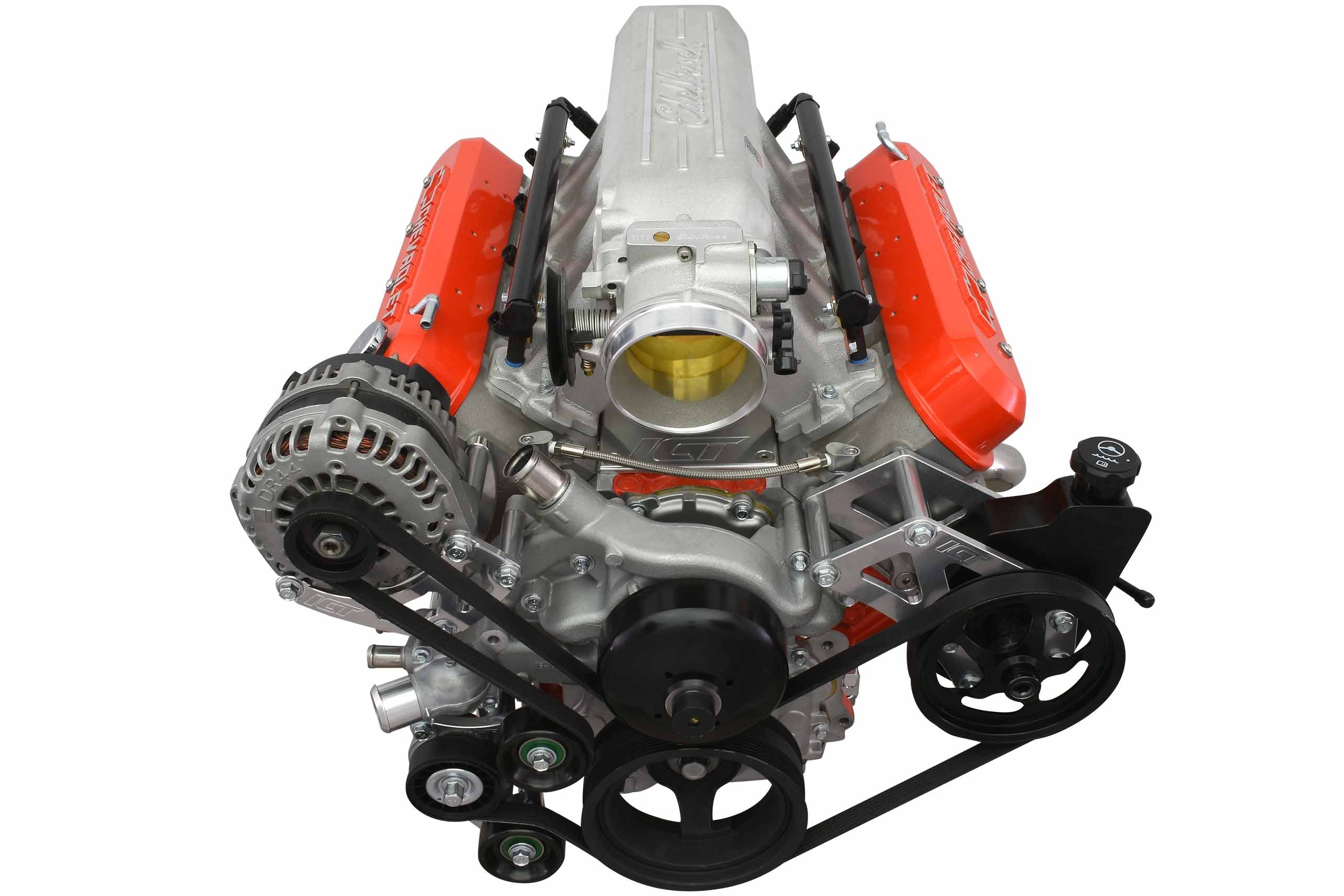

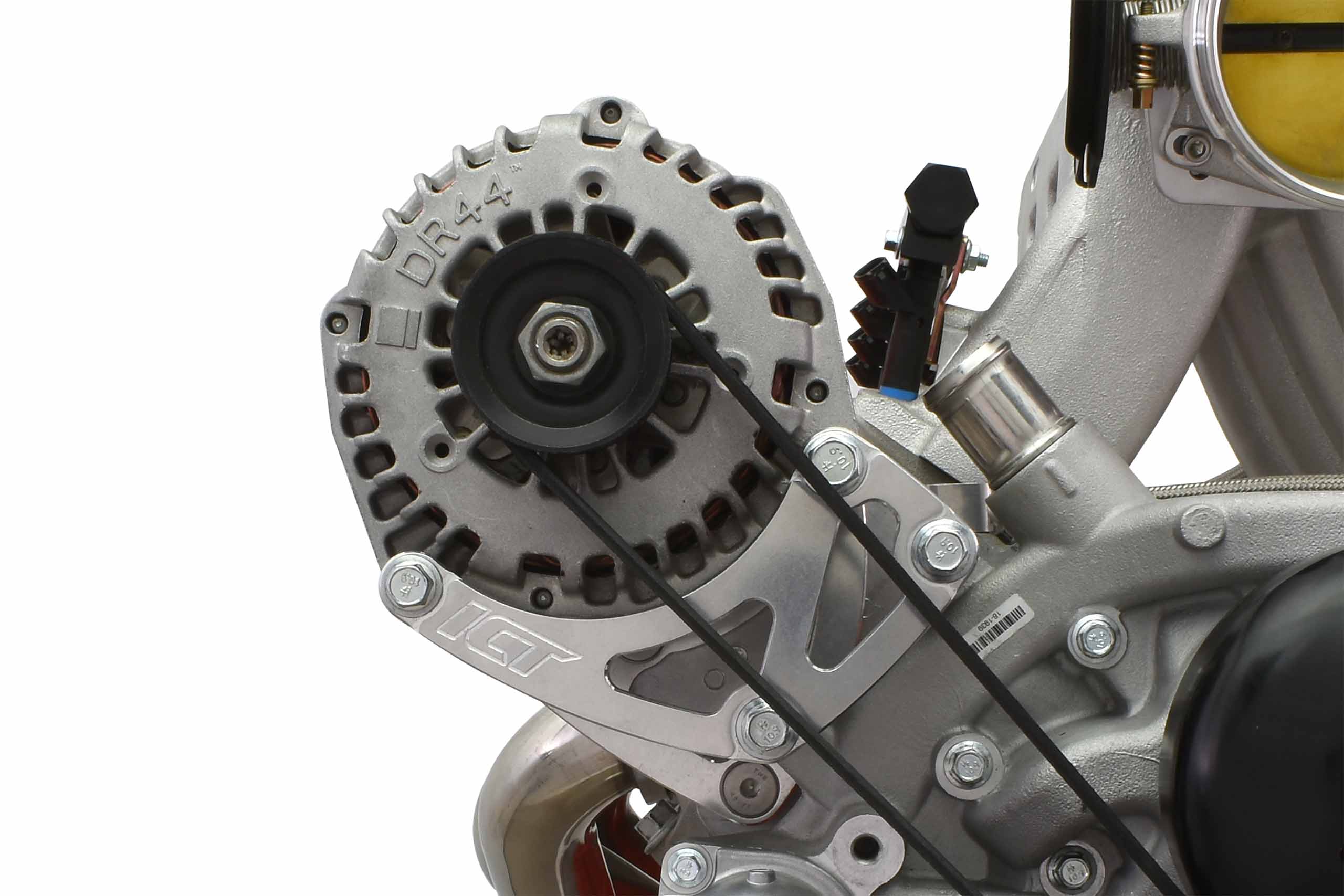

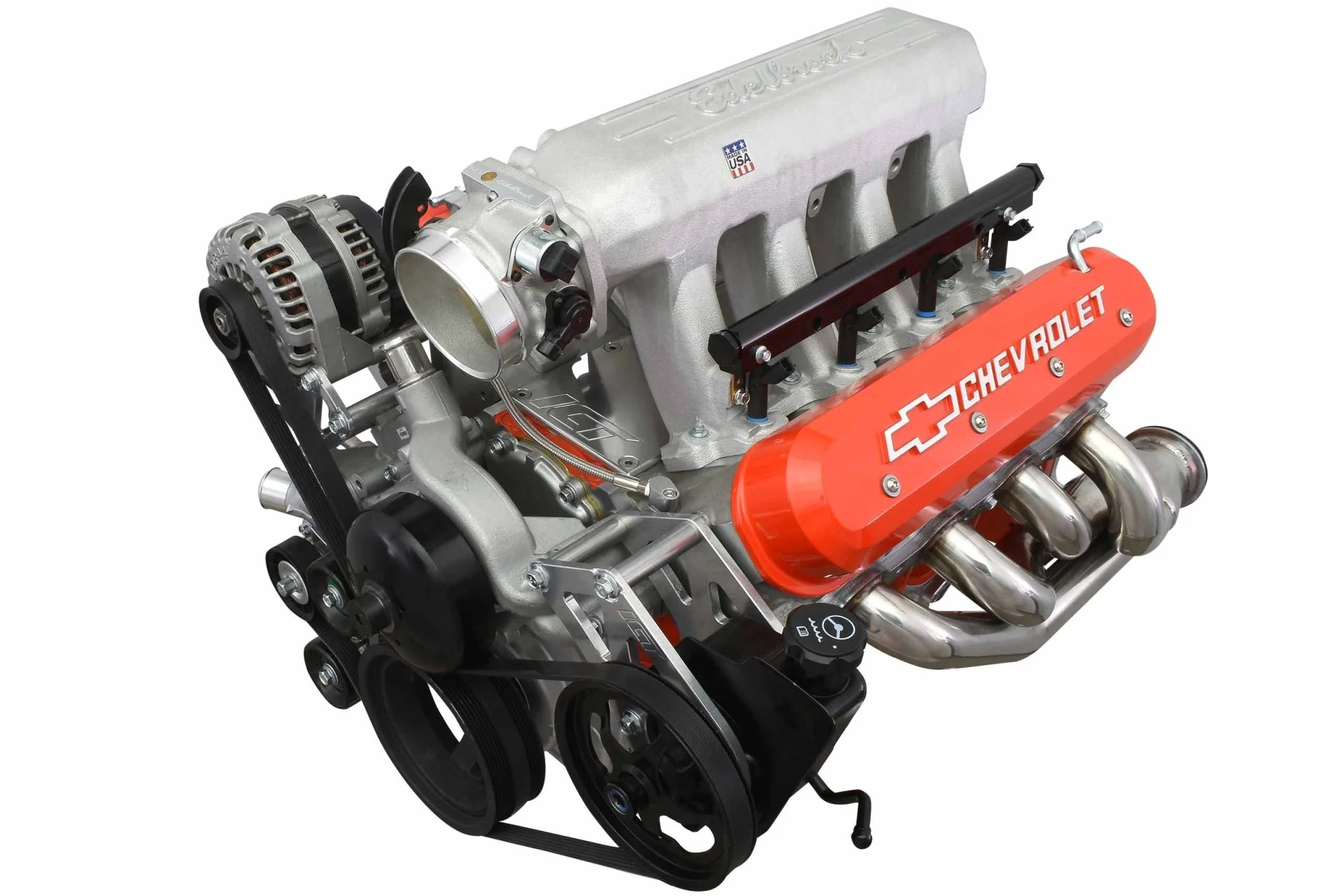

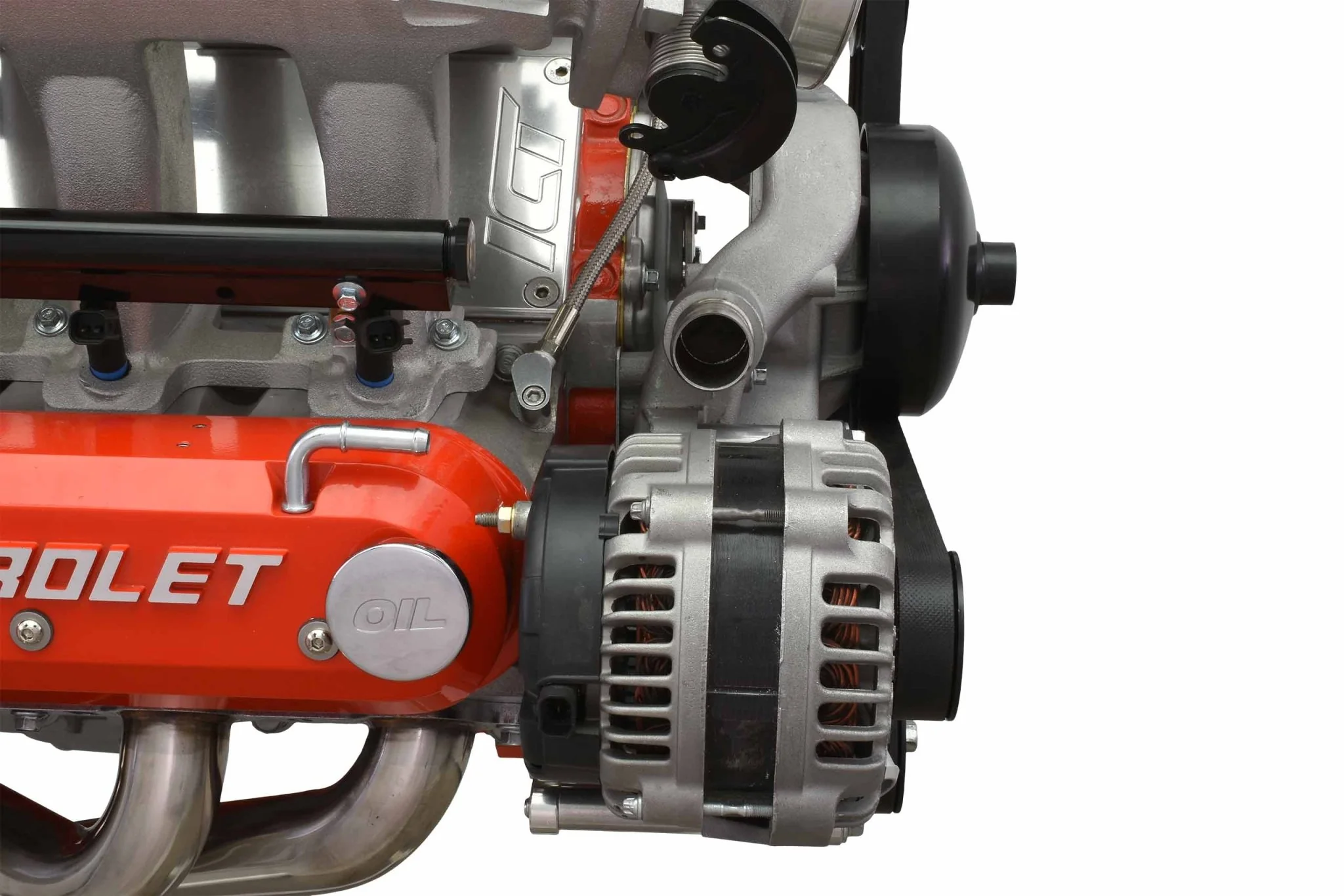

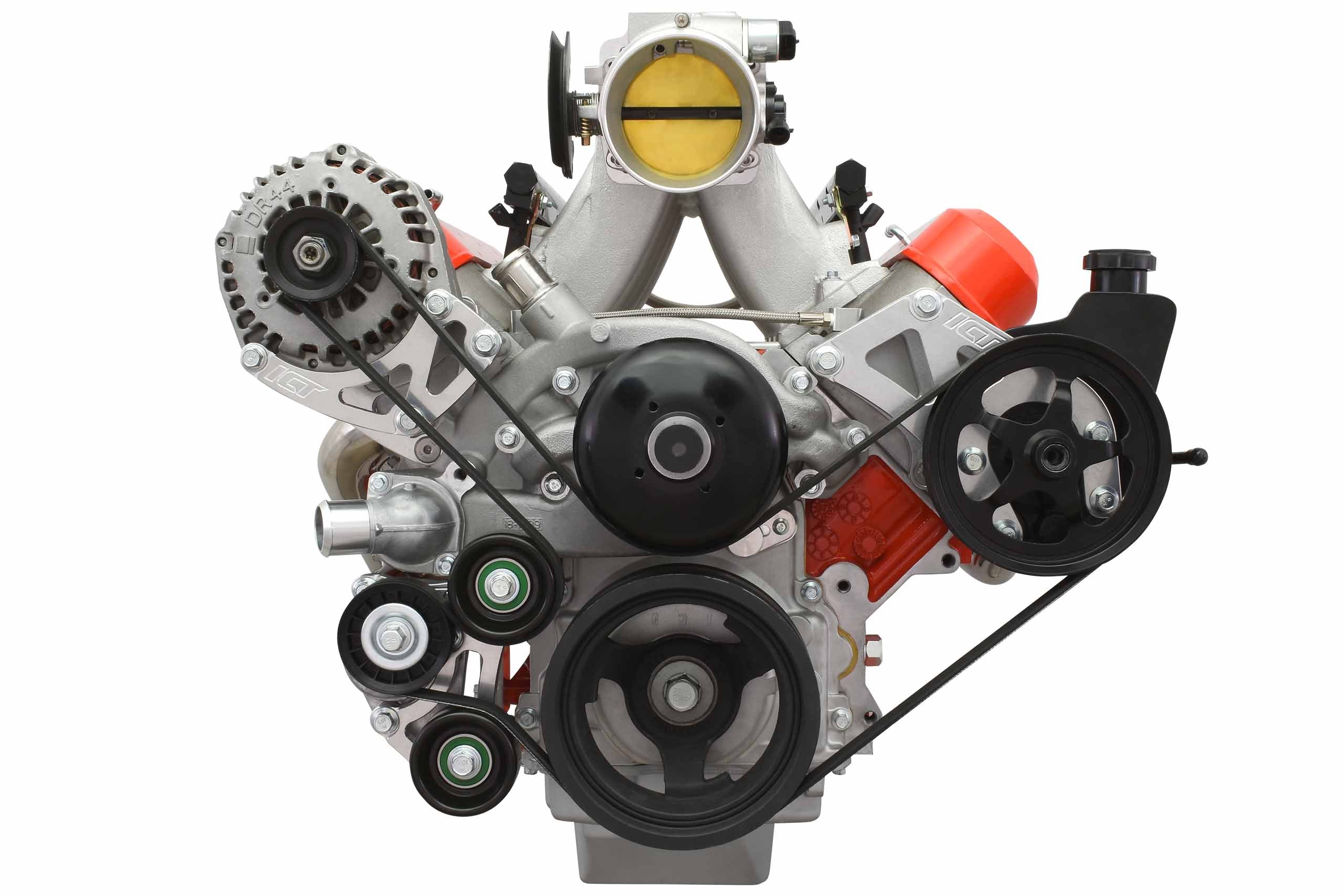

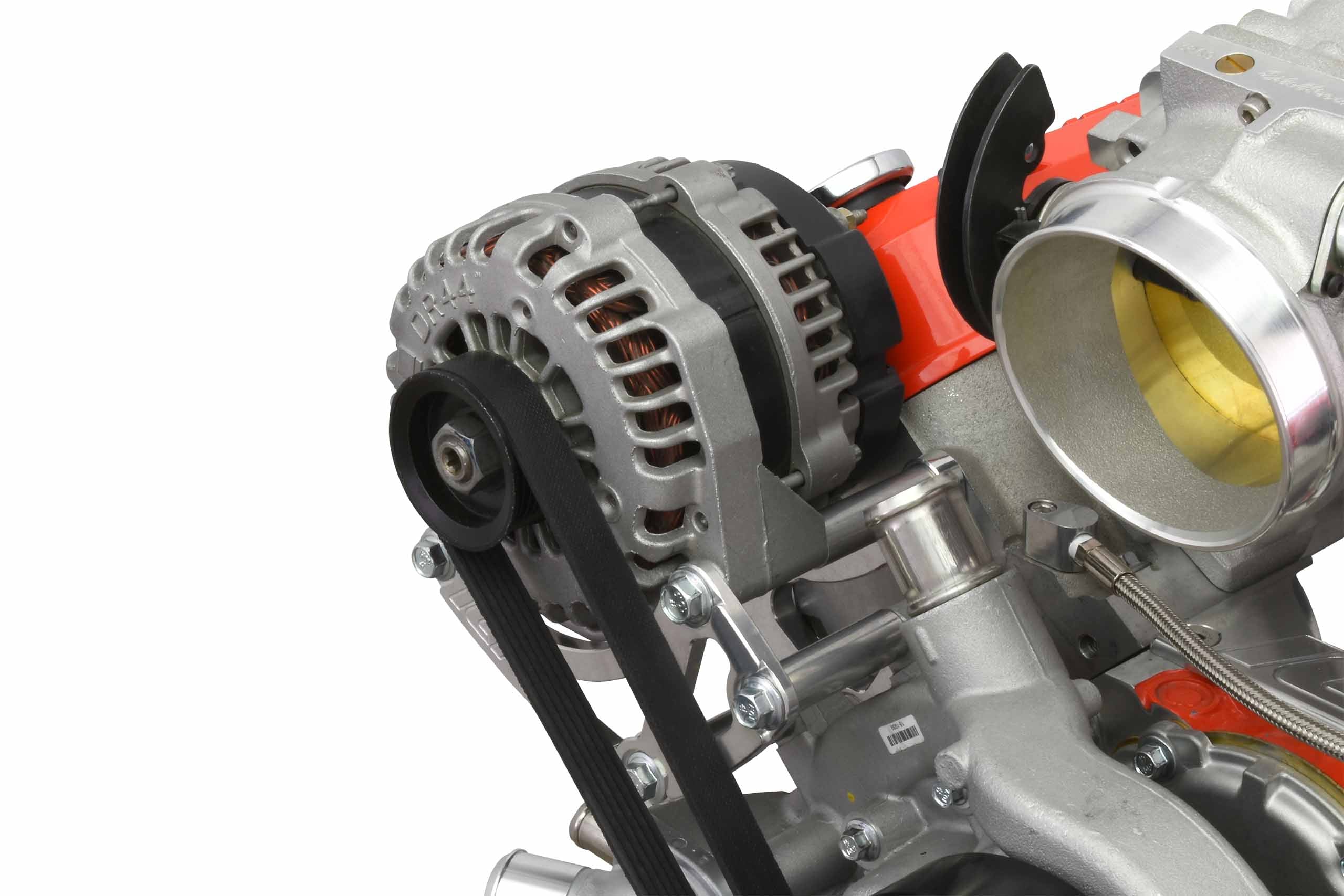

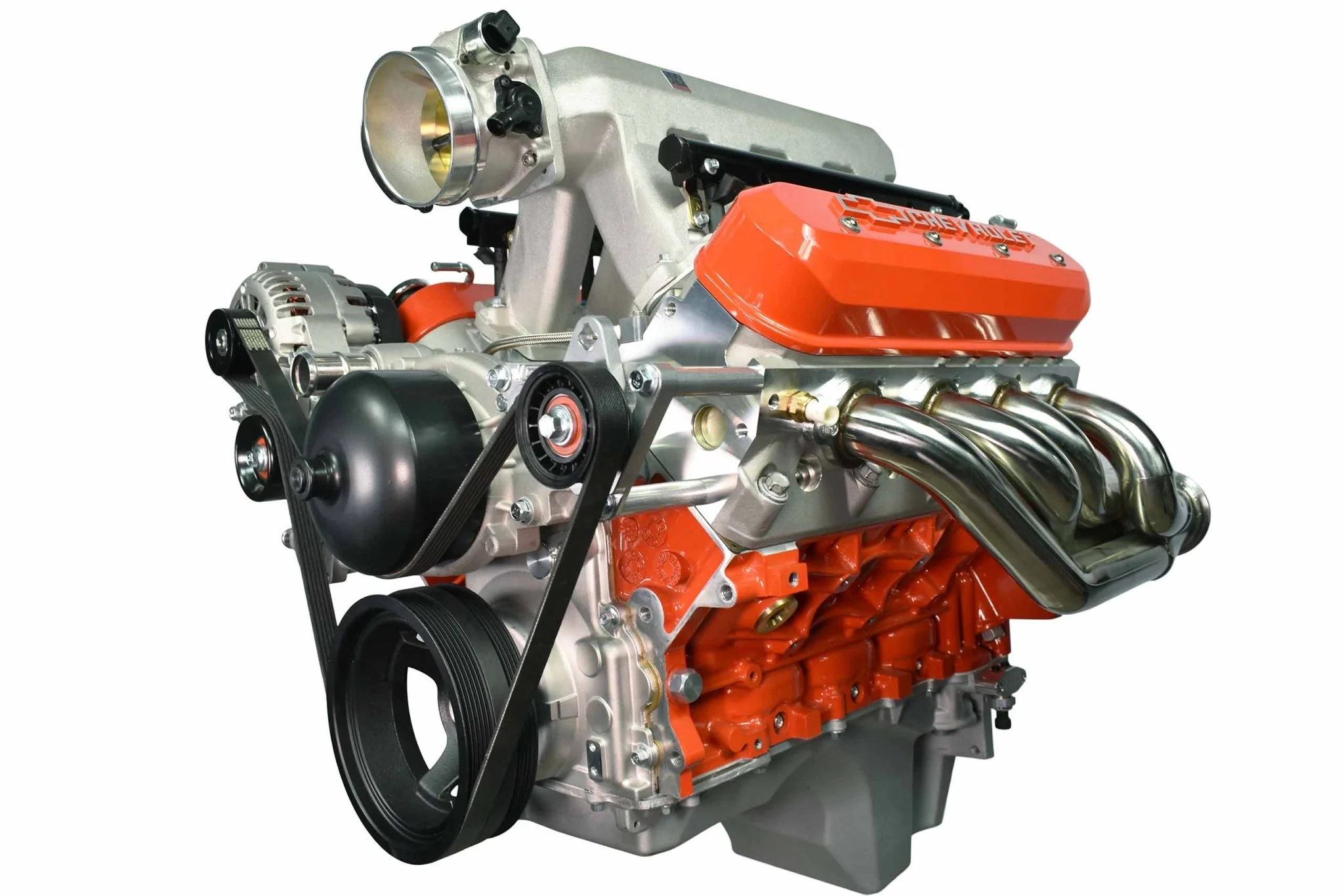

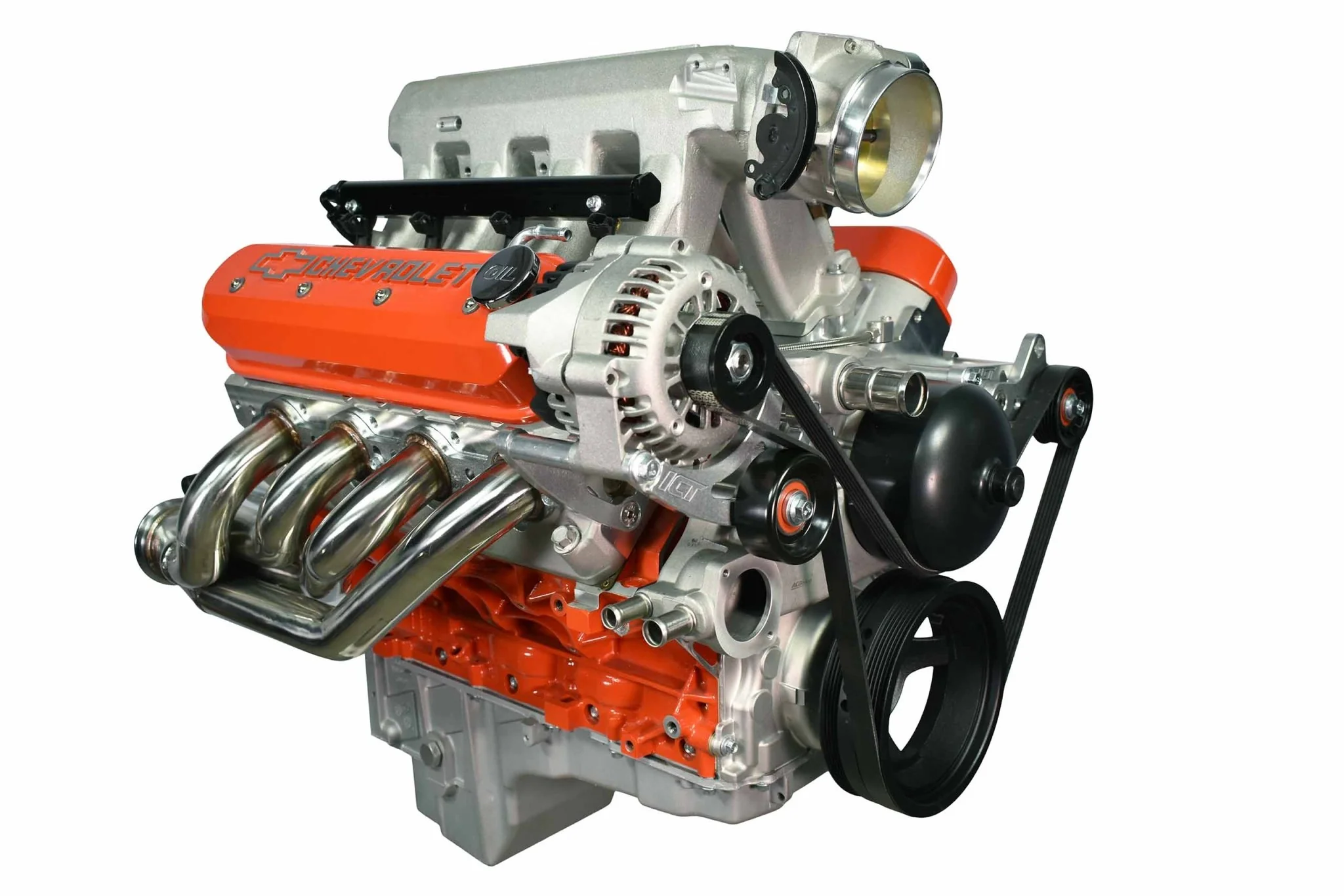

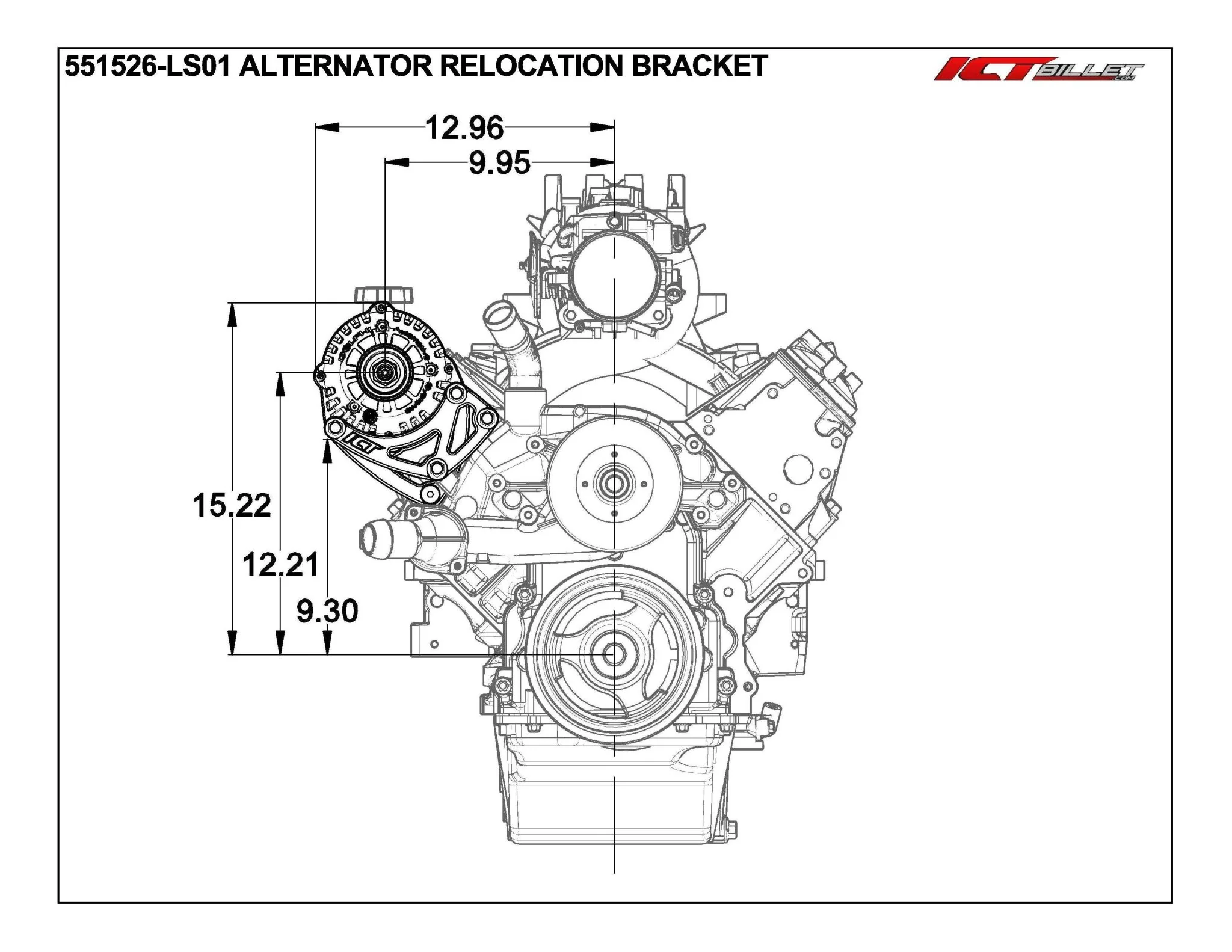

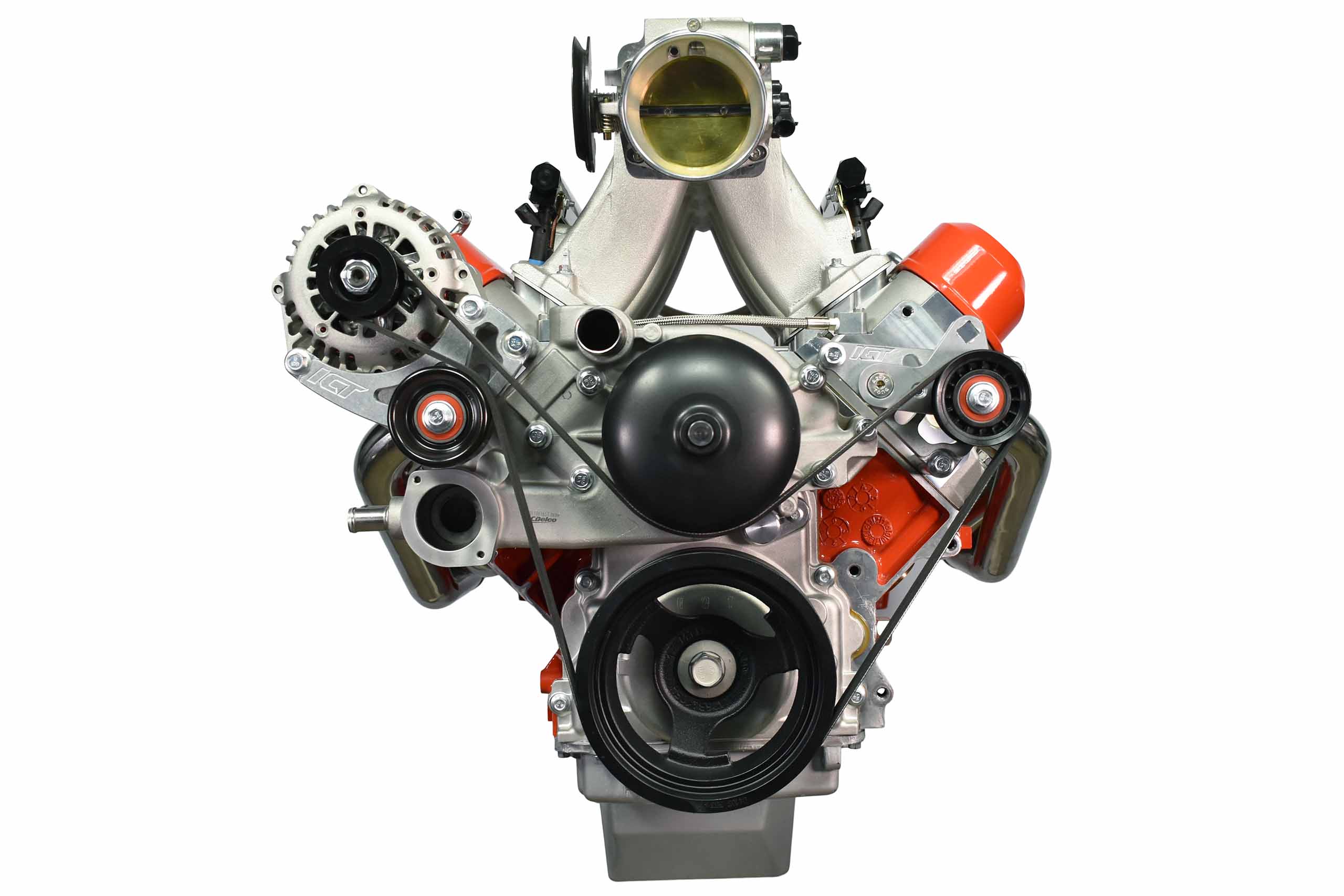

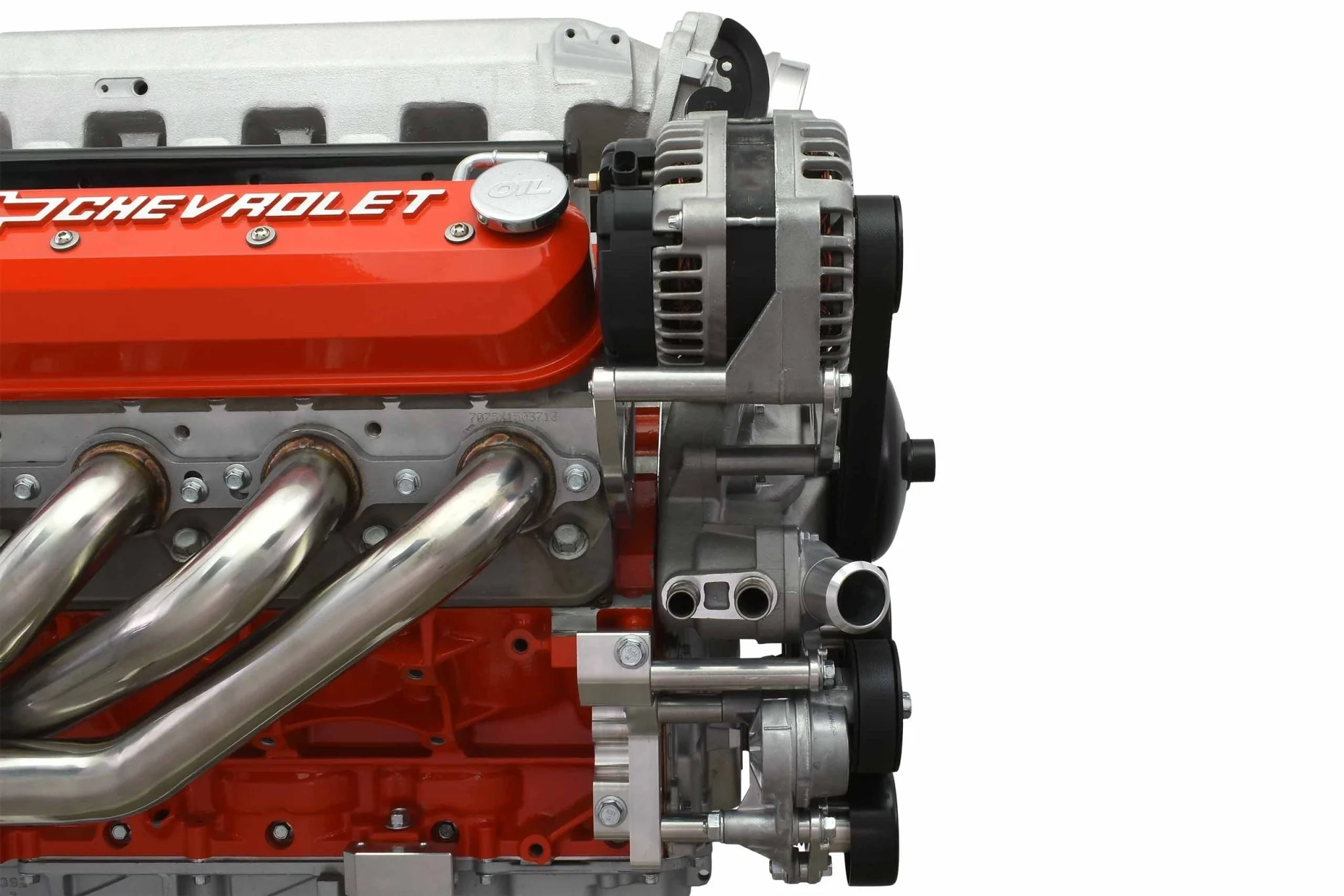

LS Alternator Relocation Bracket Passenger Side High Mount LQ4 LQ9 5.3 L33 Truck

LS Truck Alternator Bracket

Fits high amp (145-160 amp (ICT# ALT301)) alternators and 105 amp alternator (ICT# ALT300)

• Will fit alternators from any LS engine except Corvette/CTSV or 2010 up Camaro alternators

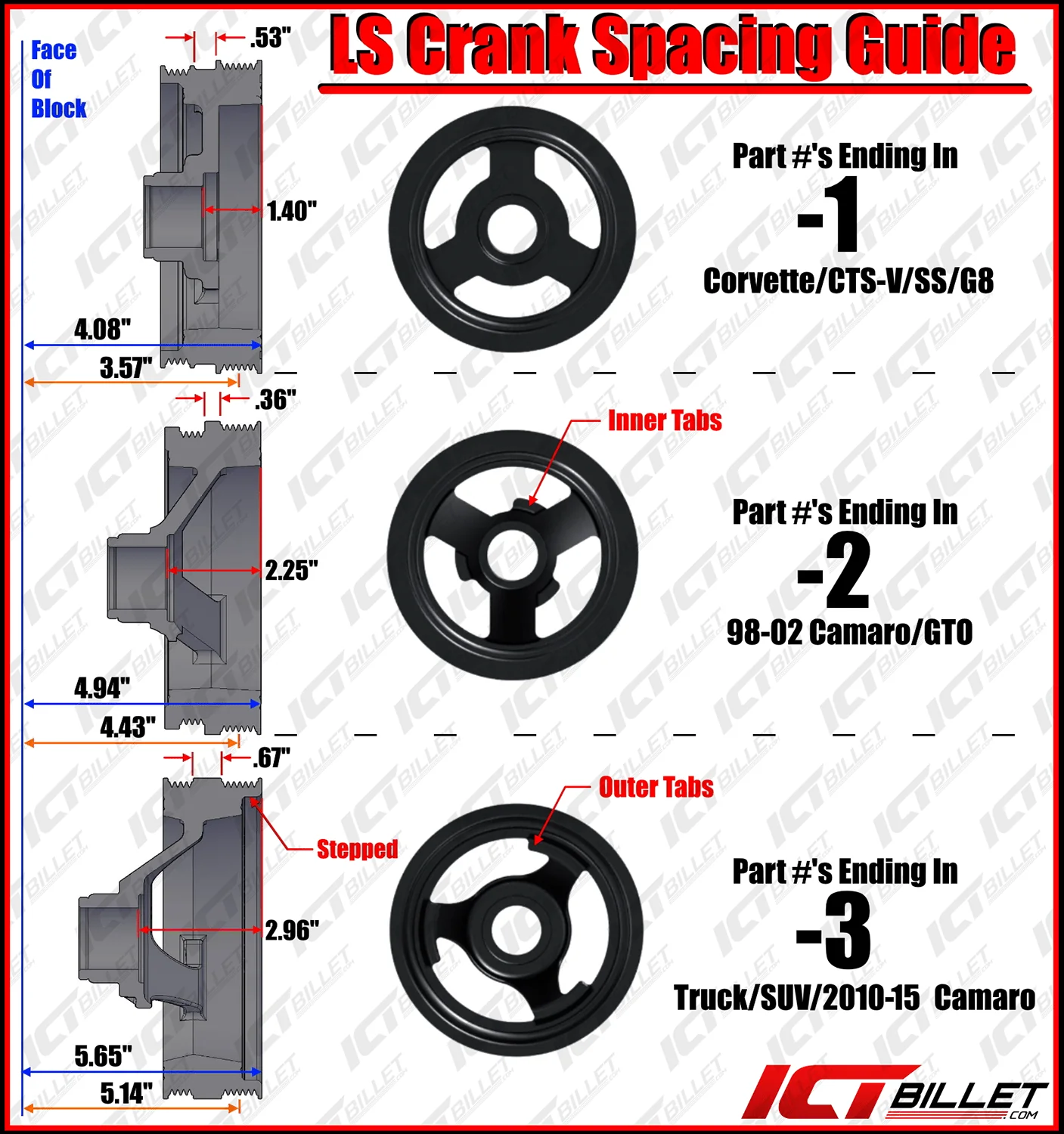

• Compatible with truck/SUV (or 2010-15 Camaro) crank pulley (ICT# BAL300)
• Will not fit with LS3 Corvette water pumps

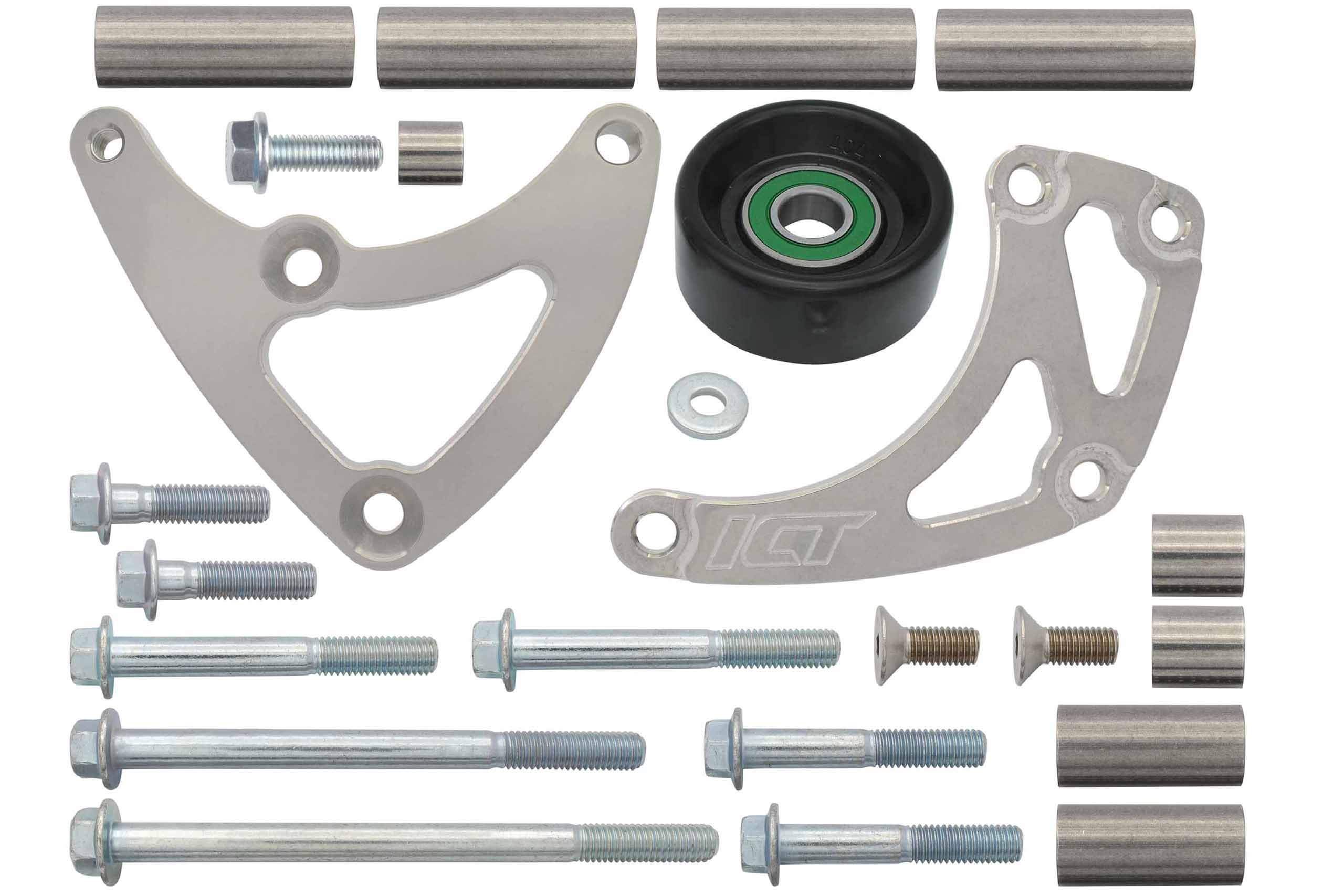

• Includes: bracket and mounting hardware
• If needing to extend your alternator harness connection, use ICT# WEALT
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

Belt lengths when used with:

• 551527X & 551785 710K6 with 105amp alt
• 551527X & 551706 770K6 with 105amp alt
• 551596 610K6 with 105amp alt
