LS Camaro Low Mount Alternator, Power Steering Pump Brackets LSX LS1 LS6 Billet

LS1 Camaro Alternator and Power Steering Pump Bracket Kit

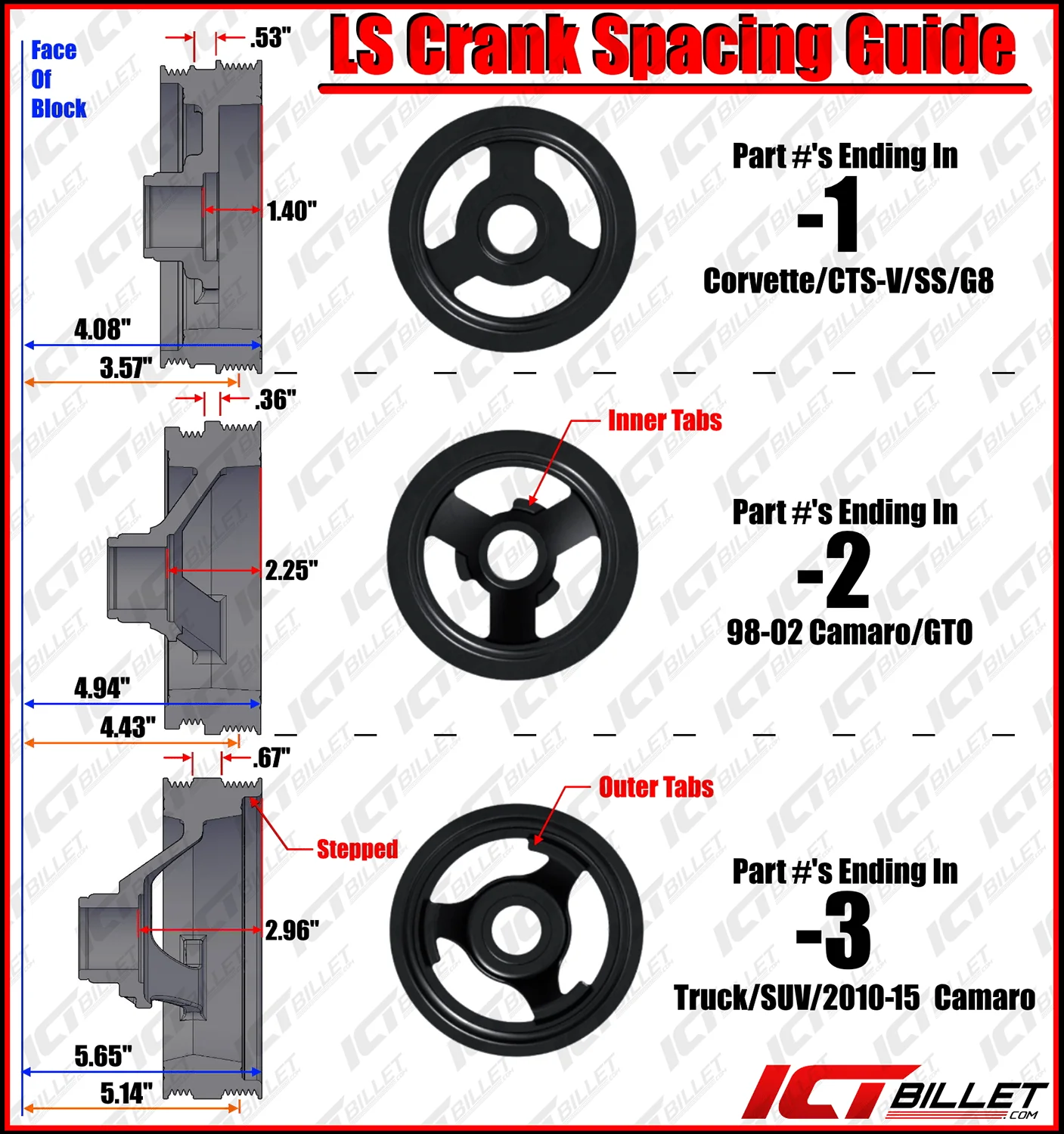

Compatible with 1998-02 LS1 Camaro (GTO any year) crank pulley (ICT # BAL200)

• When using an iron block, we recommend using our front support bracket to add the 3rd mounting point for the alternator bracket SKU 551921.
• Compatible with 1998-02 LS1 Camaro power steering pump & pulley (ICT # PUM200 & ICT # PUL200)
• Alternator: (ICT# ALT300)(will not fit Corvette/CTSV/G8 or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage. 145+ alternators do not have the provision for the rear bracket, but can still be used.
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
• Includes: alternator bracket, power steering bracket, idler pulley, and mounting hardware
• **Compatible with: all GM LS series engines

Compatible with (based on vehicle 3D scans by ICT)

• Nissan 240SX, S14        95-98

**On "truck" engine blocks with only 1 mounting hole in the block, you will be required to drill a second mounting hole using drill template 551445

Belt lengths when used with:

• 790K6 with 105amp alt and factory tensioner
• 551472 955K6 with 105amp alt and factory tensioner
• 551474 987K6 with 105amp alt and factory tensioner
• 551585 980K6 with 105amp alt and factory tensioner

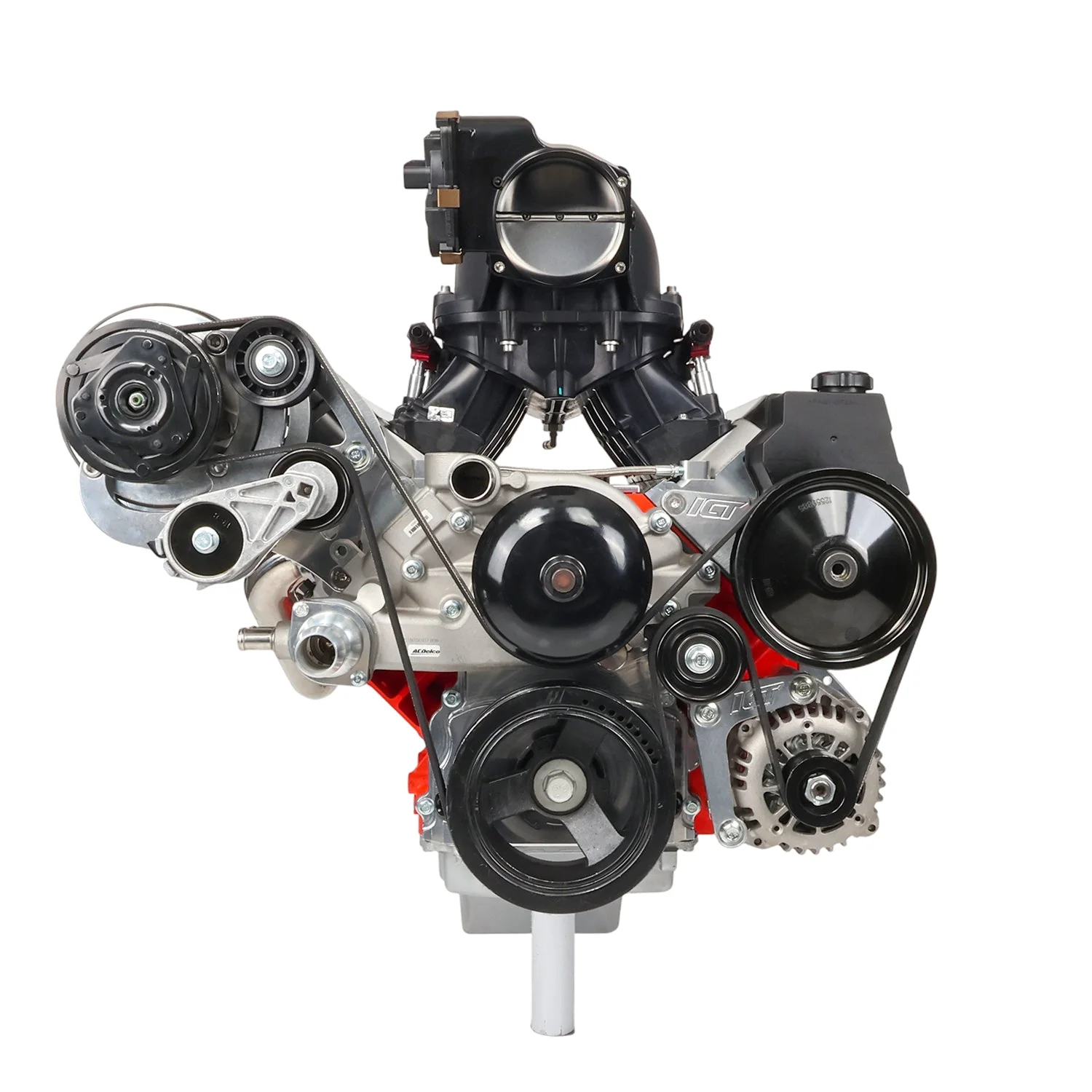

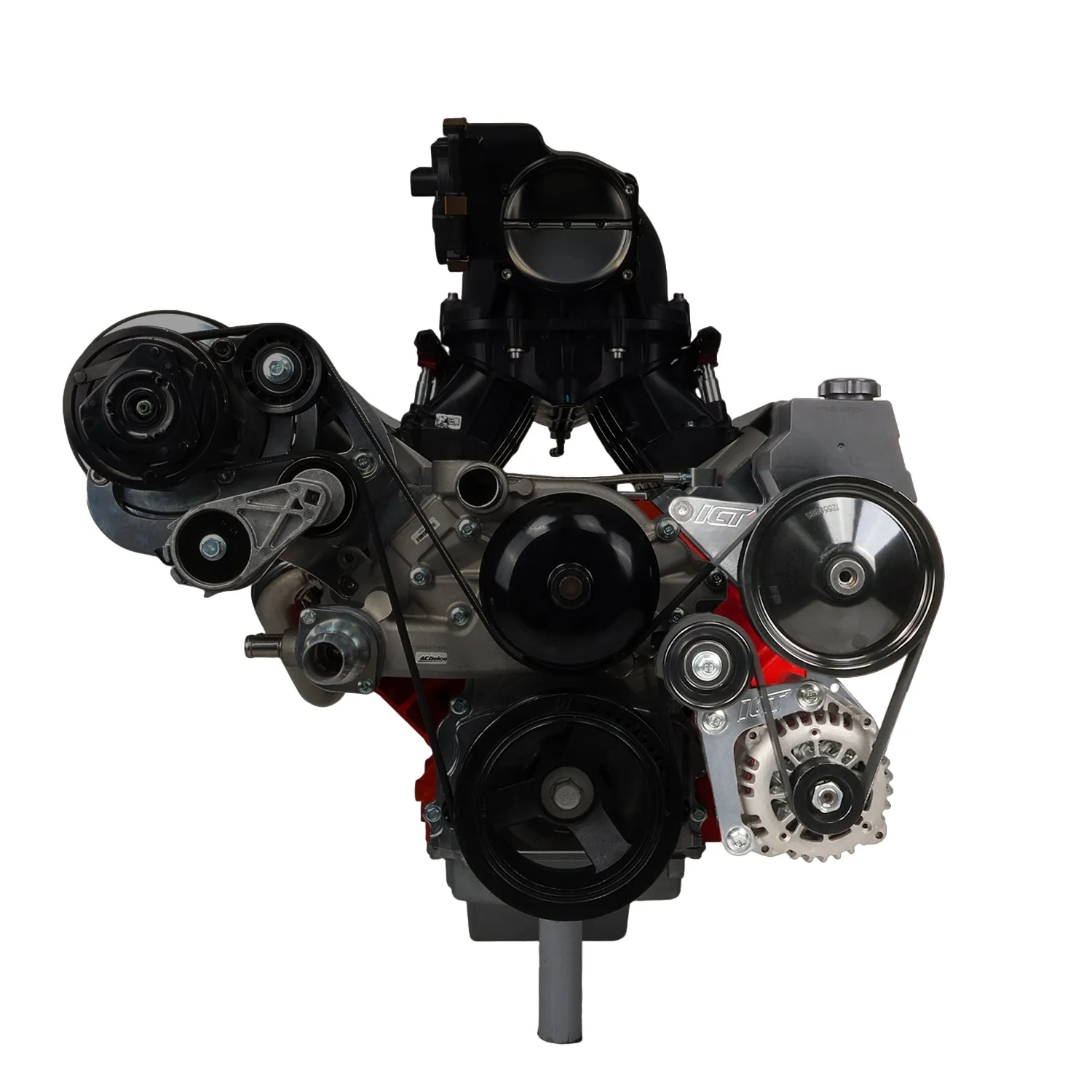

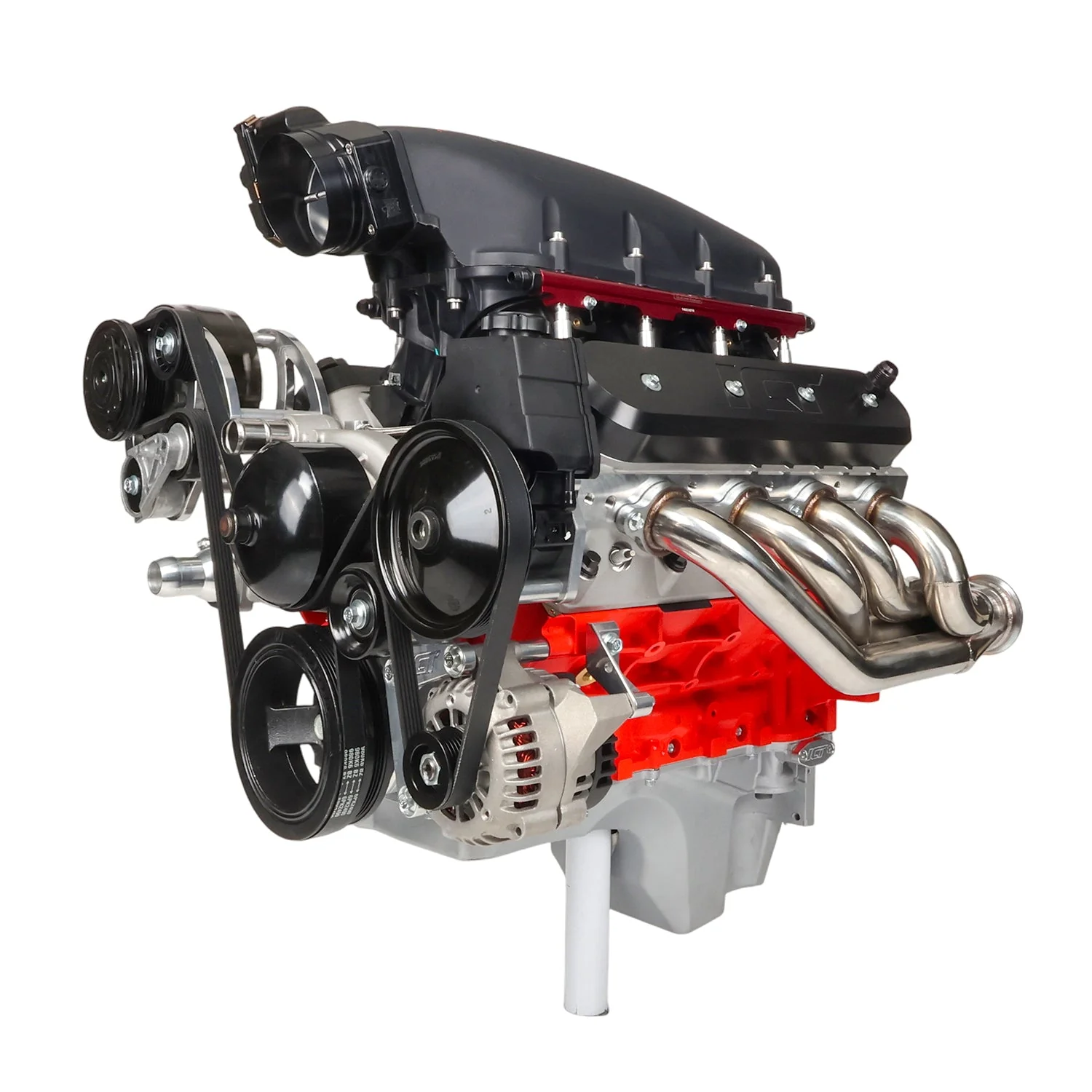

These brackets mounts the power steering pump and alternator in the 98-02 Camaro Z28 Factory Location
