LS Corvette R4 A/C Air Conditioner Compressor Bracket LS1 LS3 CTS-V LSX LS7 LS9
LS Corvette R4 A/C Compressor Heavy Duty Bracket Kit
Compatible with Corvette (any year LS) (or CTSV/G8/SS) crank pulley (ICT # BAL100)
- Can be used with A/C compressor Part #
- Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum

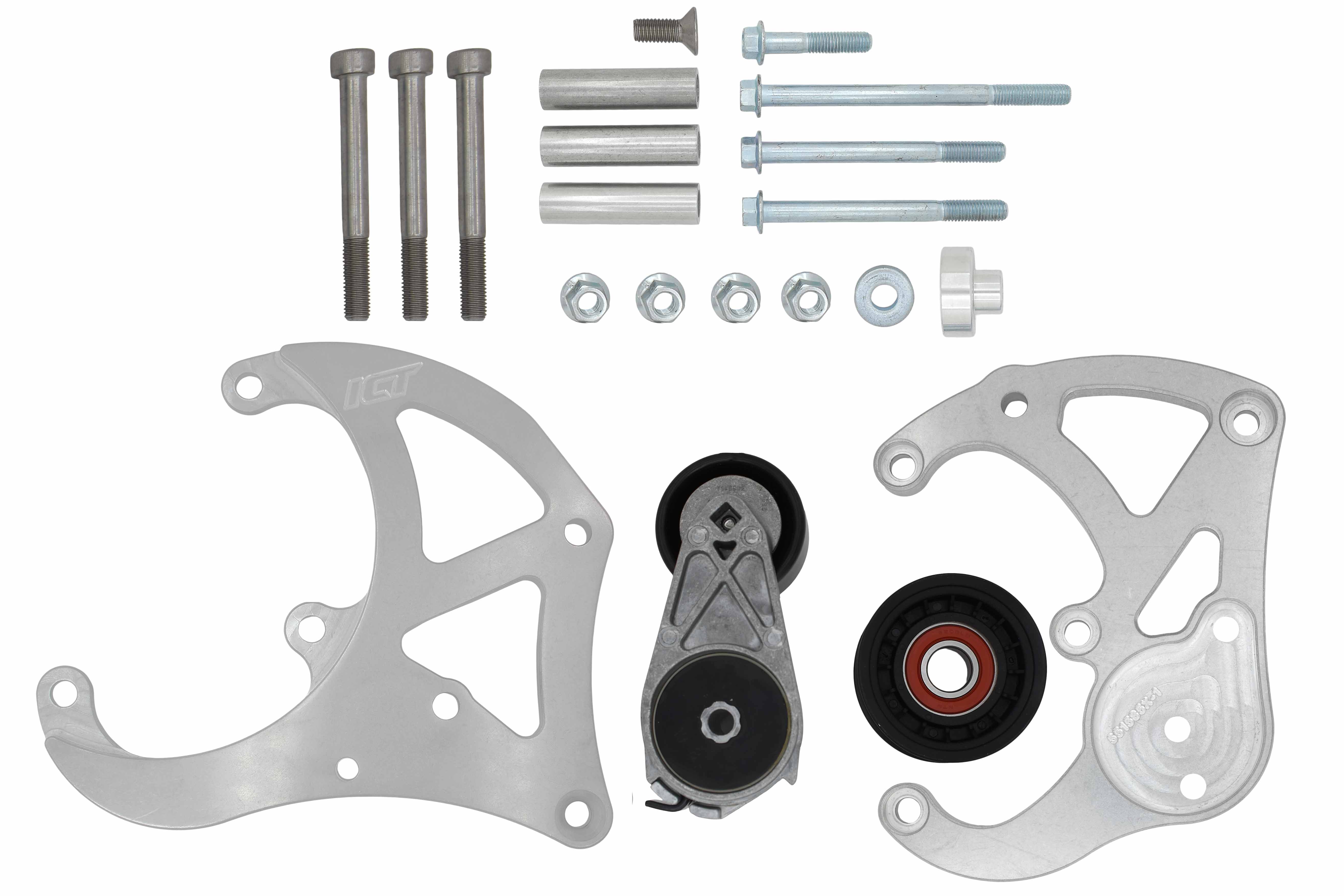

- Includes: A/C compressor bracket, belt tensioner, and mounting hardware
Belt length with 105 amp alternator and ICT 551521-1: 970K6 (97.0 inch). This does NOT use the factory style LS vehicle a/c compressors (25891791) If using a Camaro R4 A/C compressor (has larger 5" diameter pulley) then bolt heads will need clearanced at the compressor pulley. Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479
Belt lengths when used with:
- 551769-1 1025K6 with 105amp alt
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LS Corvette R4 A/C Compressor Heavy Duty Bracket Kit
Compatible with Corvette (any year LS) (or CTSV/G8/SS) crank pulley (ICT # BAL100)
- Can be used with A/C compressor Part #
- Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
- Includes: A/C compressor bracket, belt tensioner, and mounting hardware
Belt length with 105 amp alternator and ICT 551521-1: 970K6 (97.0 inch). This does NOT use the factory style LS vehicle a/c compressors (25891791) If using a Camaro R4 A/C compressor (has larger 5" diameter pulley) then bolt heads will need clearanced at the compressor pulley. Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479
Belt lengths when used with:
- 551769-1 1025K6 with 105amp alt
