LS Truck Denso 10S - A/C Compressor Relocation Bracket

LS Truck A/C Compressor Relocation Bracket Kit LM7 L92 L96 LSX 4.8L 5.3L 6.0L

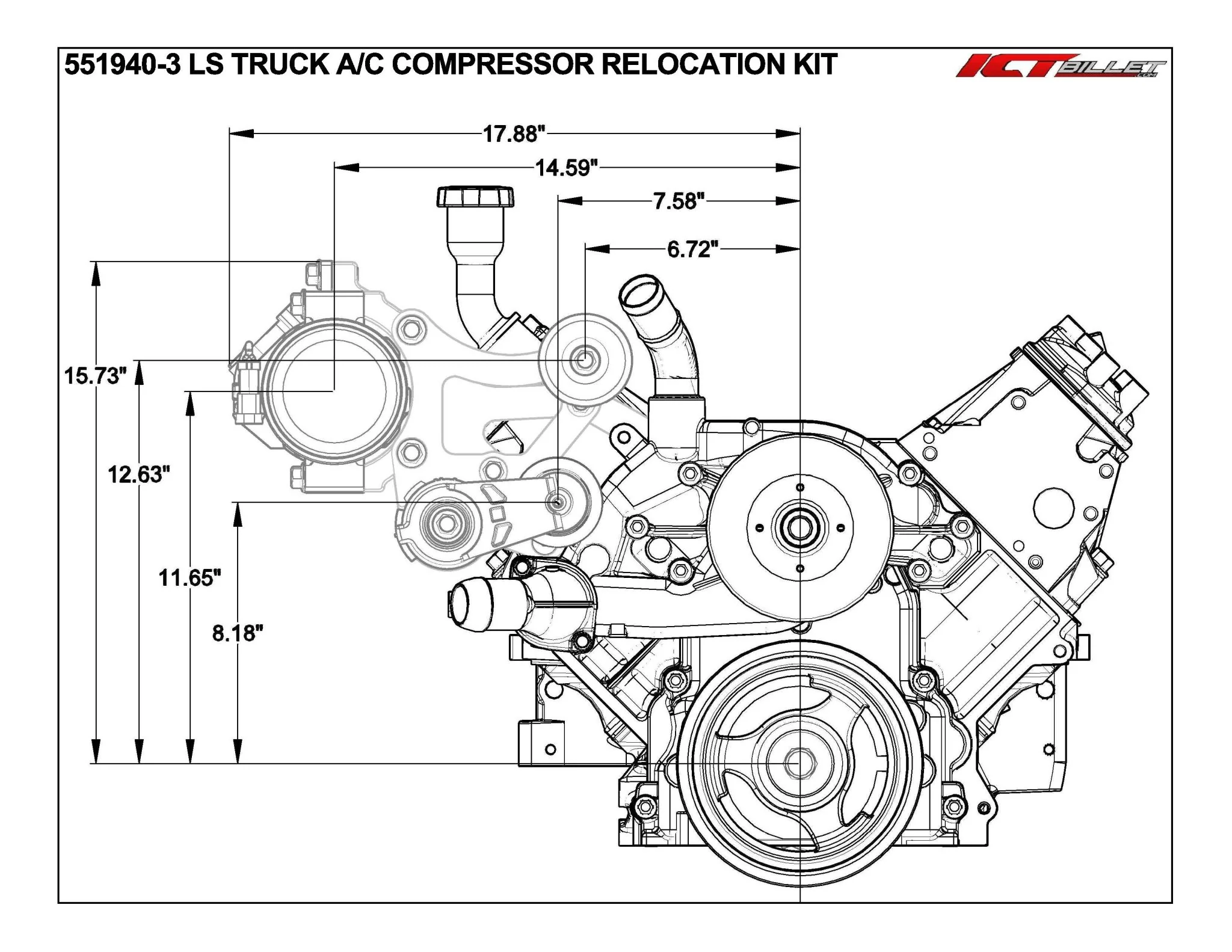

LS Truck A/C Compressor Relocation Bracket Kit

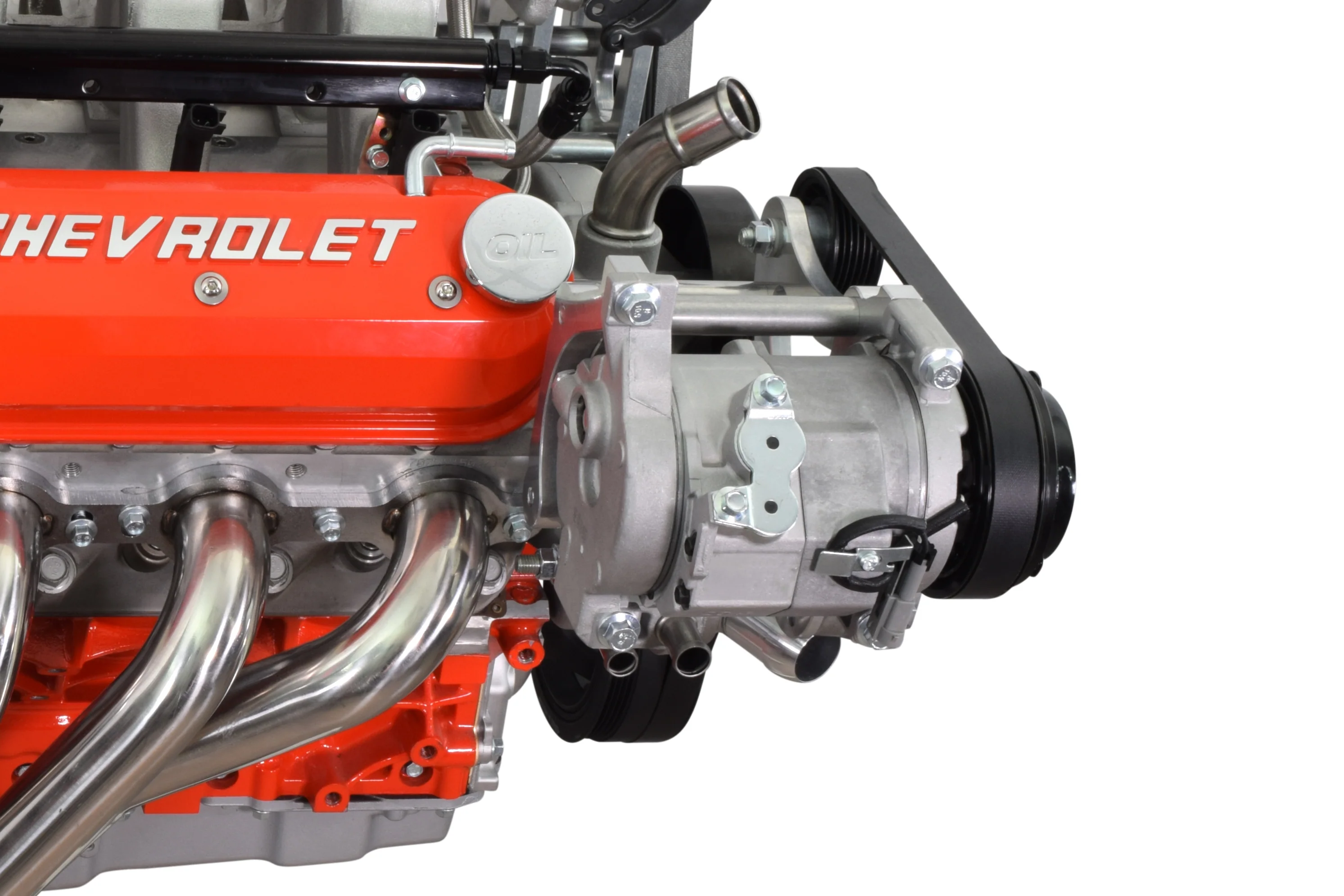

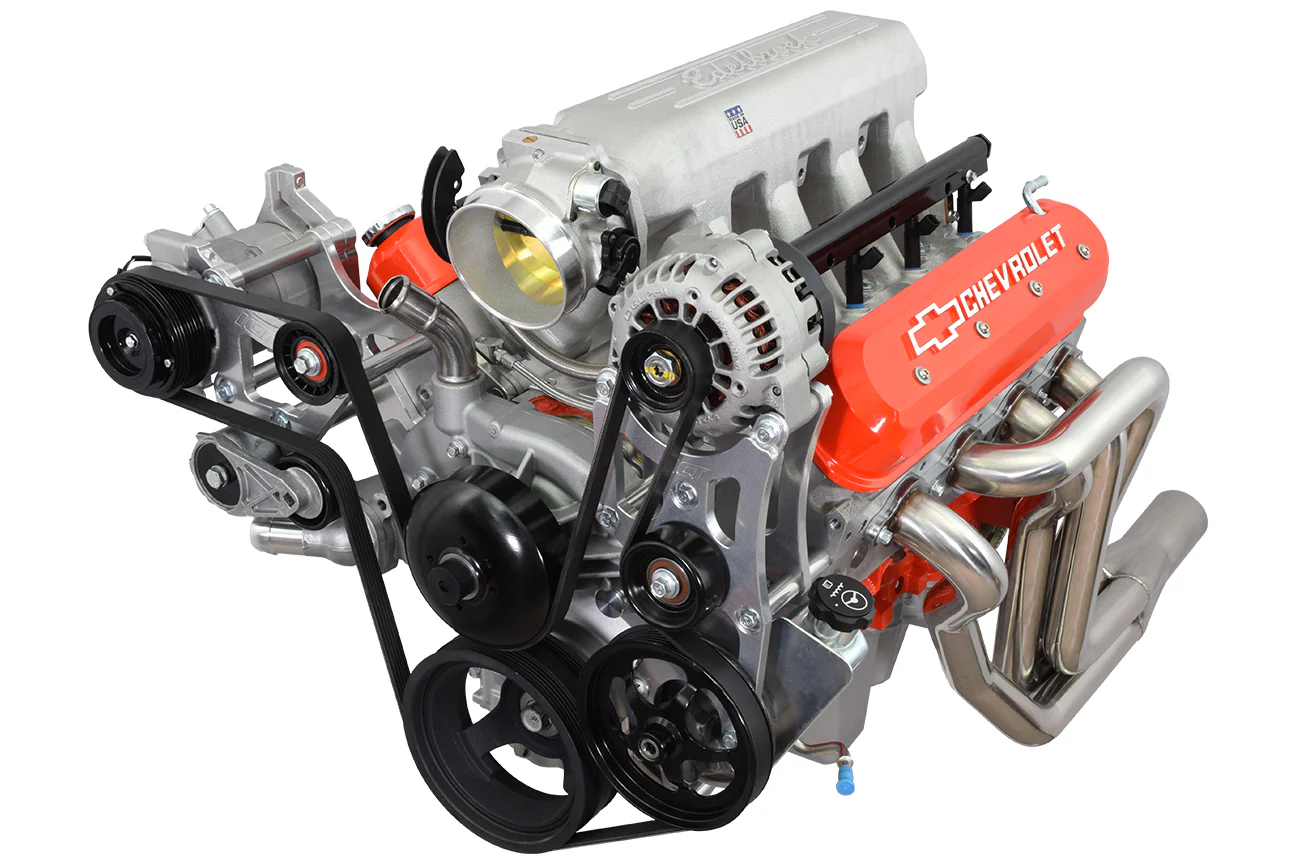

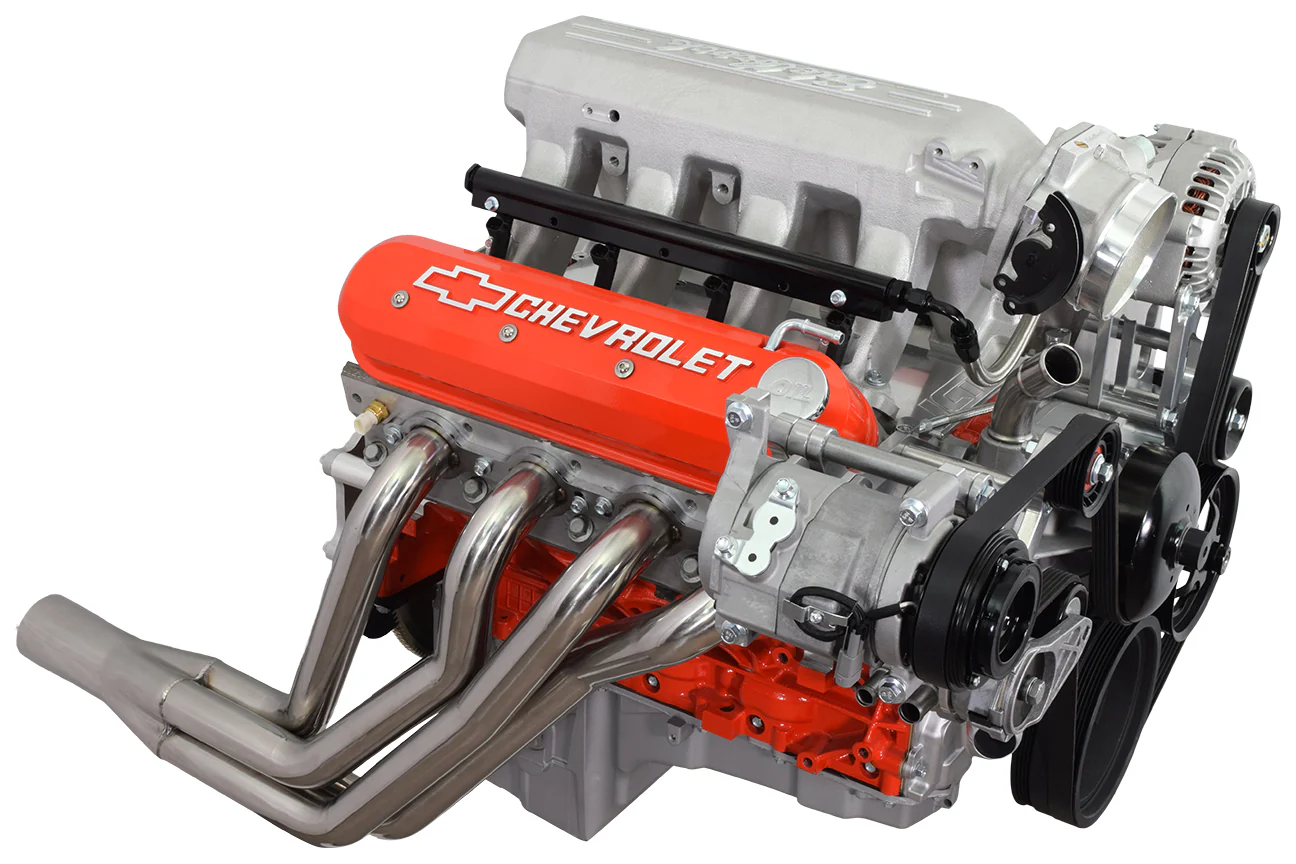

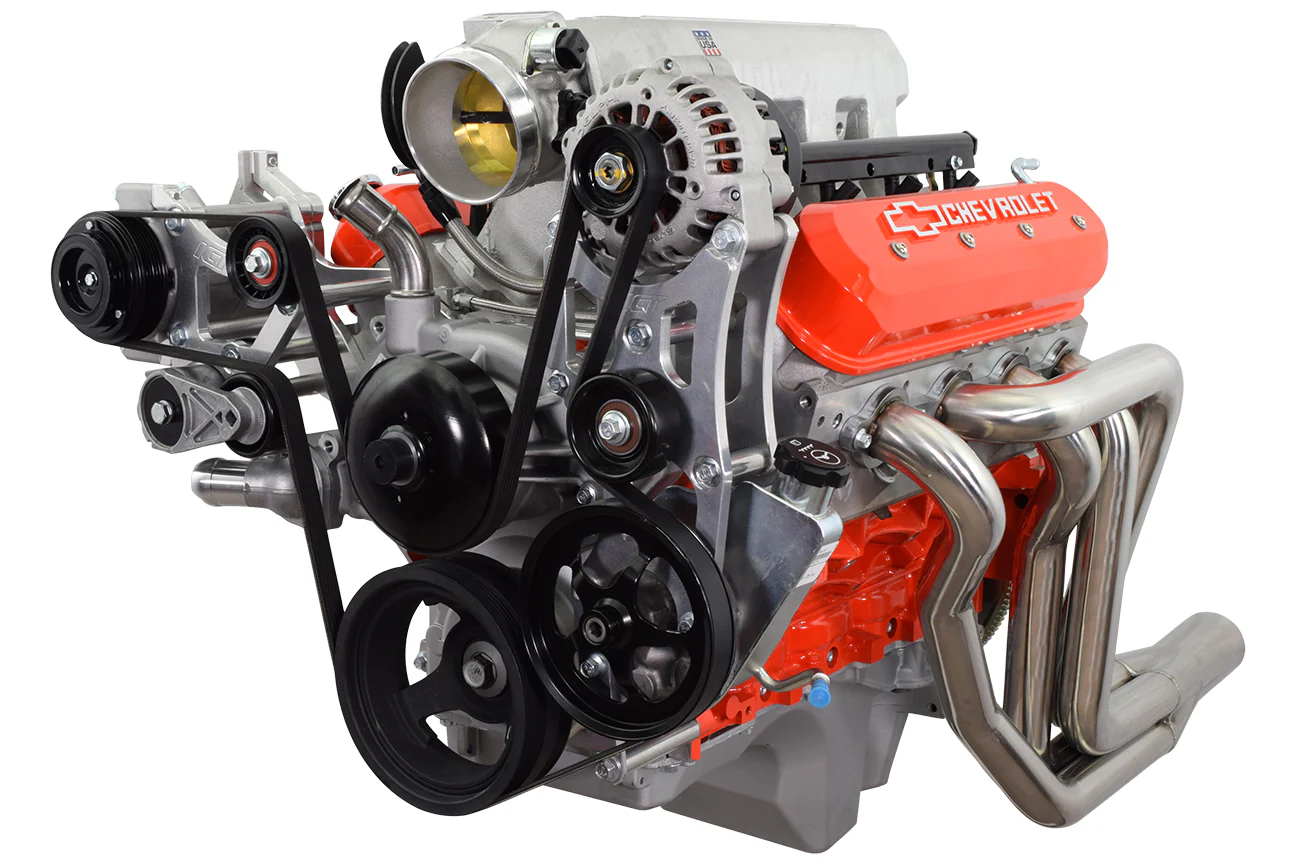

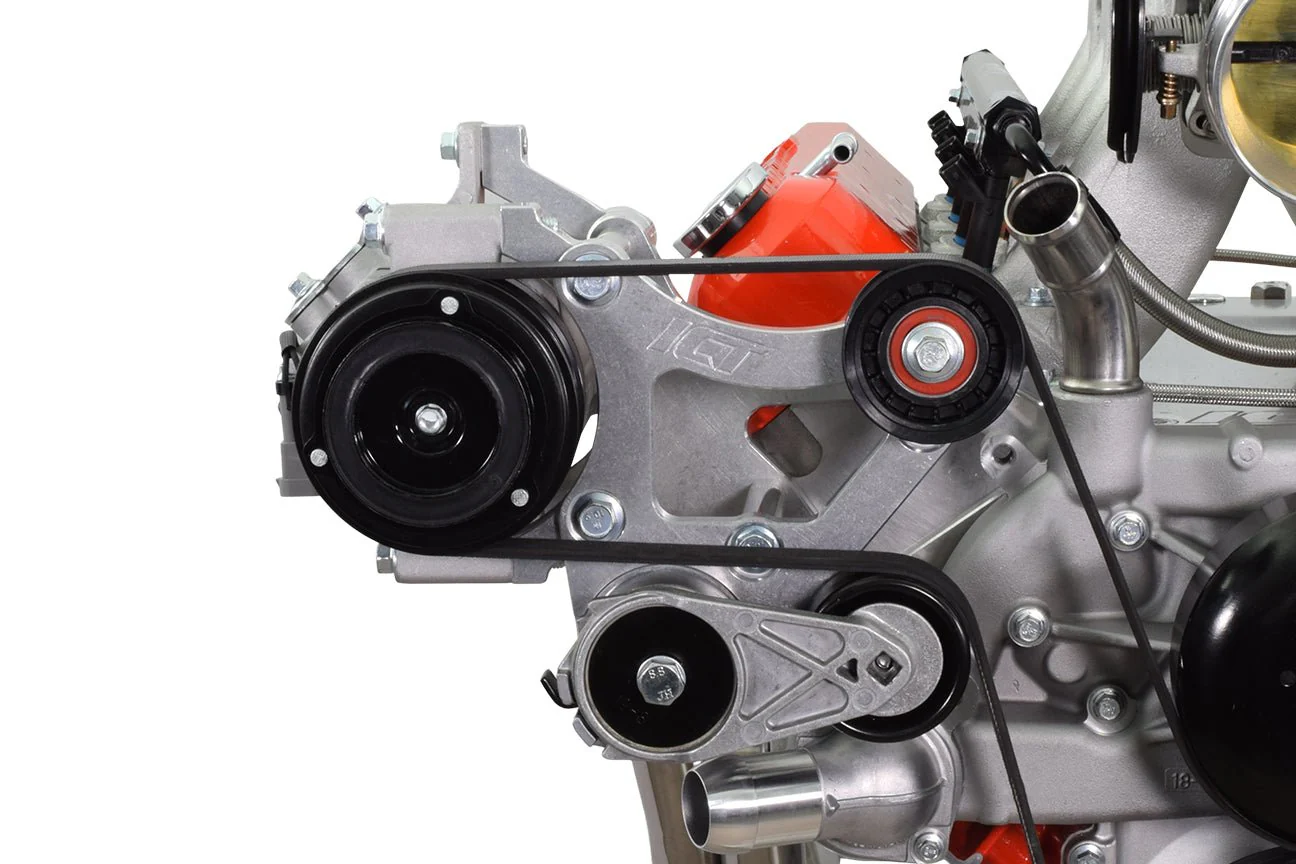

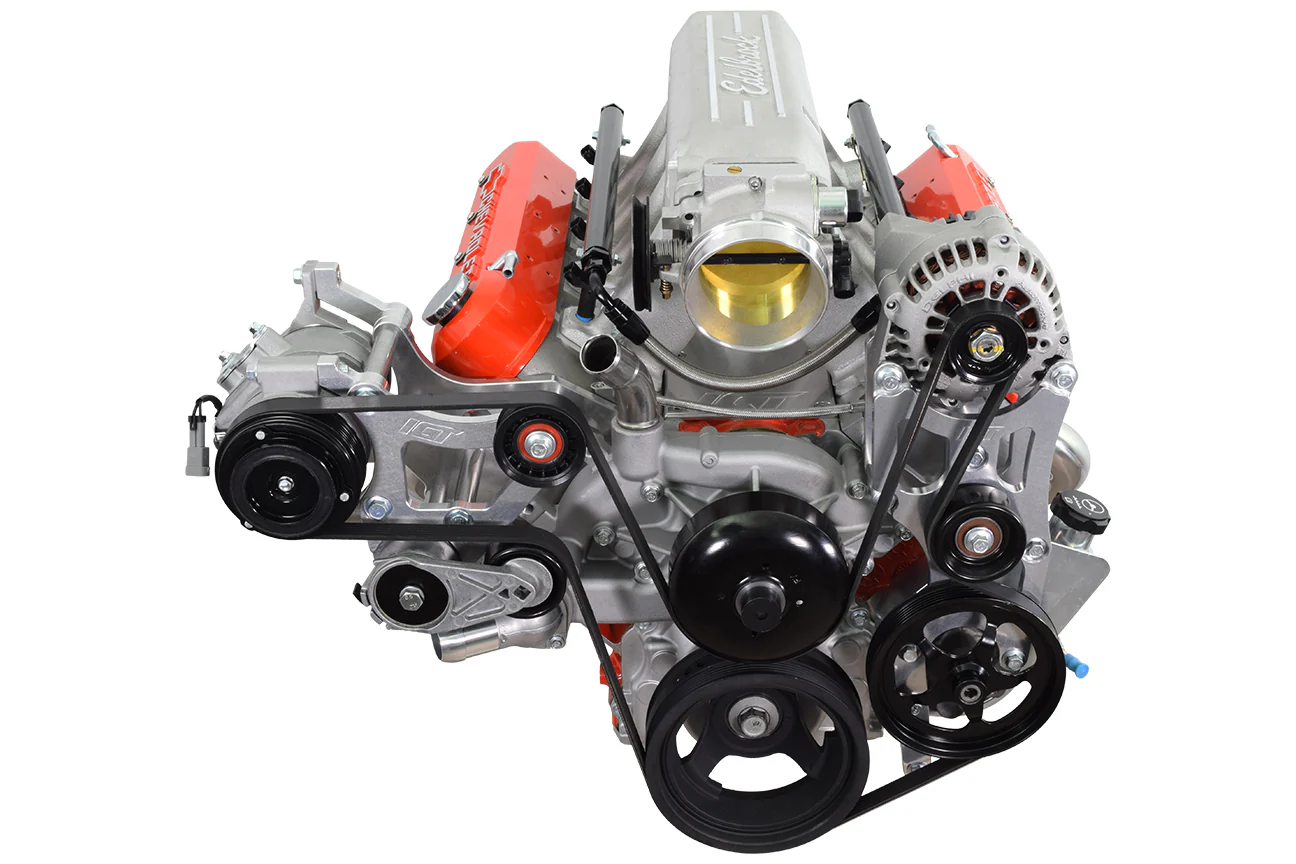

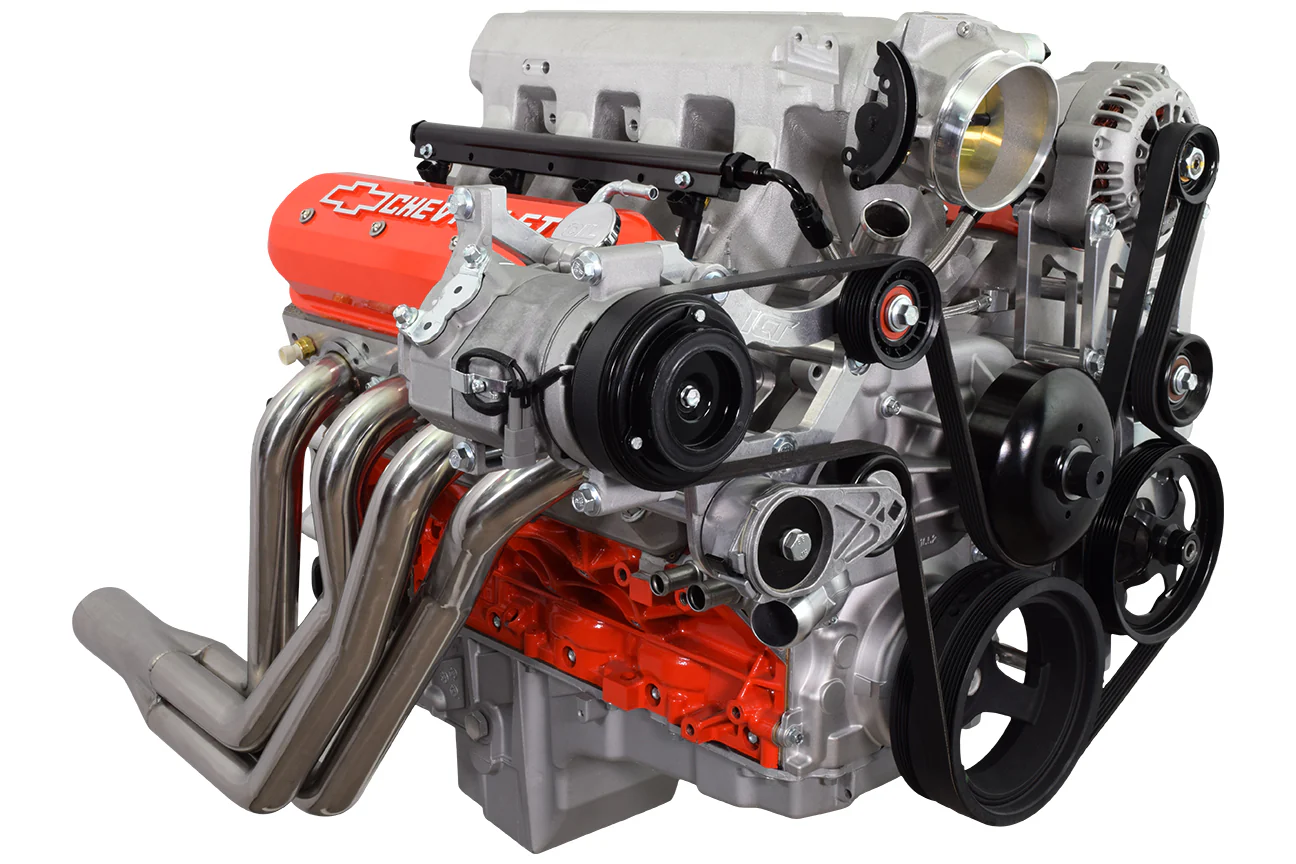

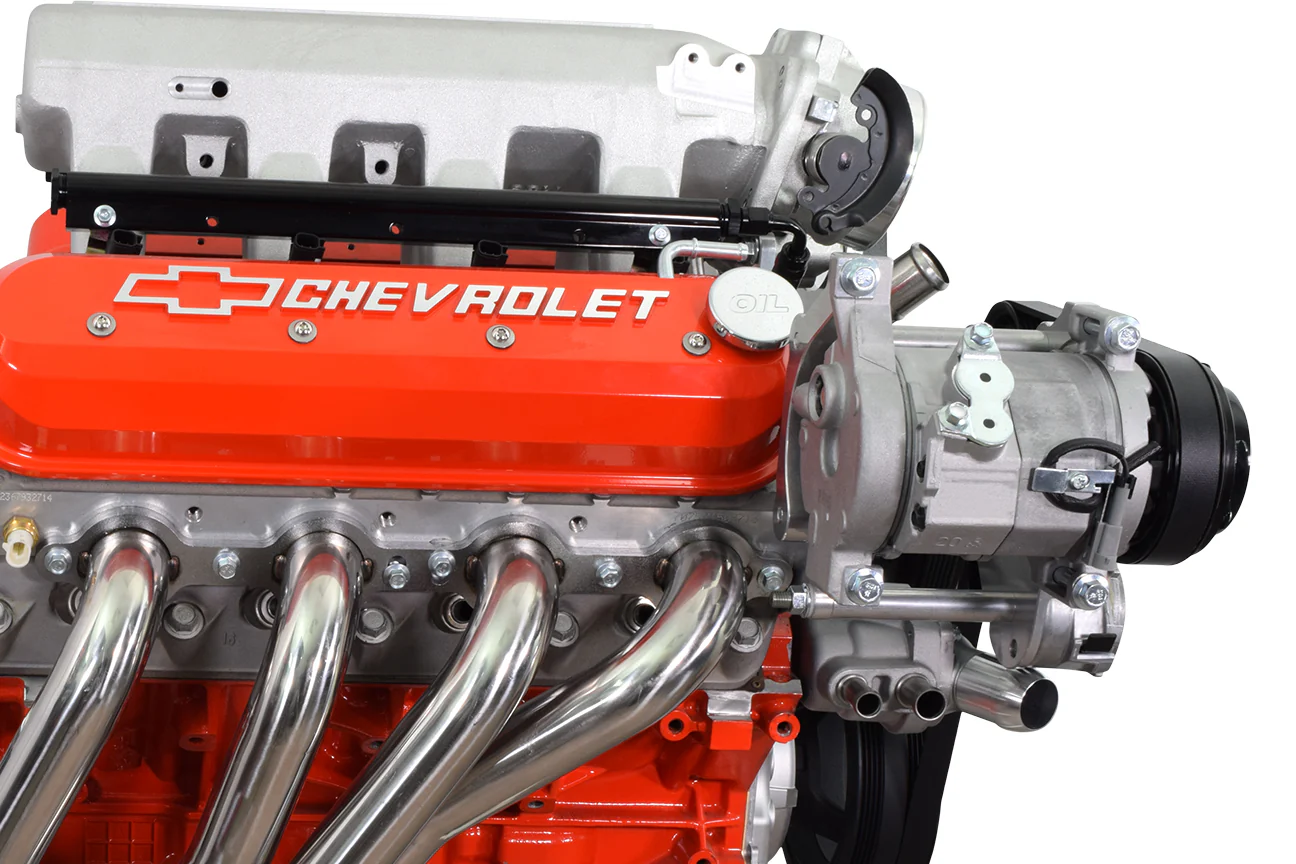

• Allows you to keep your factory LS Truck A/C compressor by relocating it up to the passenger cylinder head to help with clearance around frame rails, steering/suspension components, etc.
• Compatible with Truck/SUV (or L99/LS3 Camaro) crank pulley (ICT# BAL300)

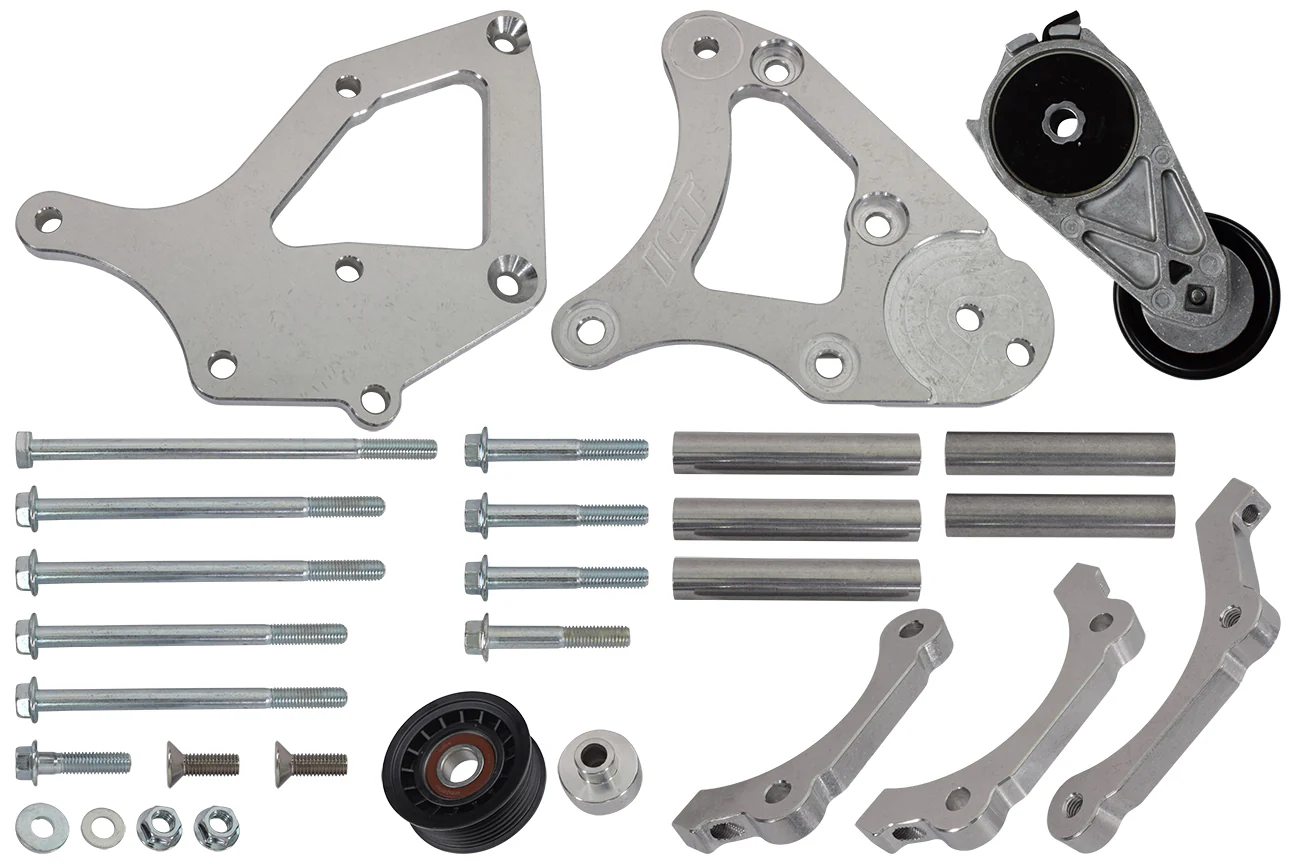

• Includes: brackets, belt tensioner, ribbed pulley and mounting hardware
• Compatible with factory LS Truck Denso 10 A/C Compressor AC Delco PN 25891791 (ICT# ACC502) and requires ICT Billet 6-Rib Conversion Pulley(ACC506)
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum



Belt Lengths:

Factory Truck Alternator and Power Steering Cast Aluminum Bracket: (105 Amp-130 Amp Alternator) 111.0” PN 1110K6 (145 Amp-160 Amp Alternator) 112.5” PN 1125K6

551353: (105 Amp-130 Amp Alternator) 97.6” PN 976K6 (145 Amp-160 Amp Alternator) 99.0” PN 990K6

551362: (105 Amp-130 Amp Alternator) 104.5” PN 1045K6

551519X: (105 Amp-130 Amp Alternator) 97.5” PN 975K6

551521X: (105 Amp-130 Amp Alternator) 99.0” PN 990K6

551556: (105 Amp-130 Amp Alternator) 95.5” PN 955K6

551577: (105 Amp-130 Amp Alternator) 95.5” PN 935K6

551668 with 551528 Ribbed Idler: (105 Amp-130 Amp Alternator) 75.0” PN 750K6

551669: (105 Amp-130 Amp Alternator) 99.0” PN 990K6

551747: (105 Amp-130 Amp Alternator) 96.0” PN 960K6

551777: (105 Amp-130 Amp Alternator) 111.0” PN 1110K6, or 0976K6 w/ 551353.

551777: (145 Amp-160 Amp Alternator) 112.5” PN 1125K6, or 0990K6 w/ 551353.

551778: (105 Amp-130 Amp Alternator) 98.5” PN 985K6
