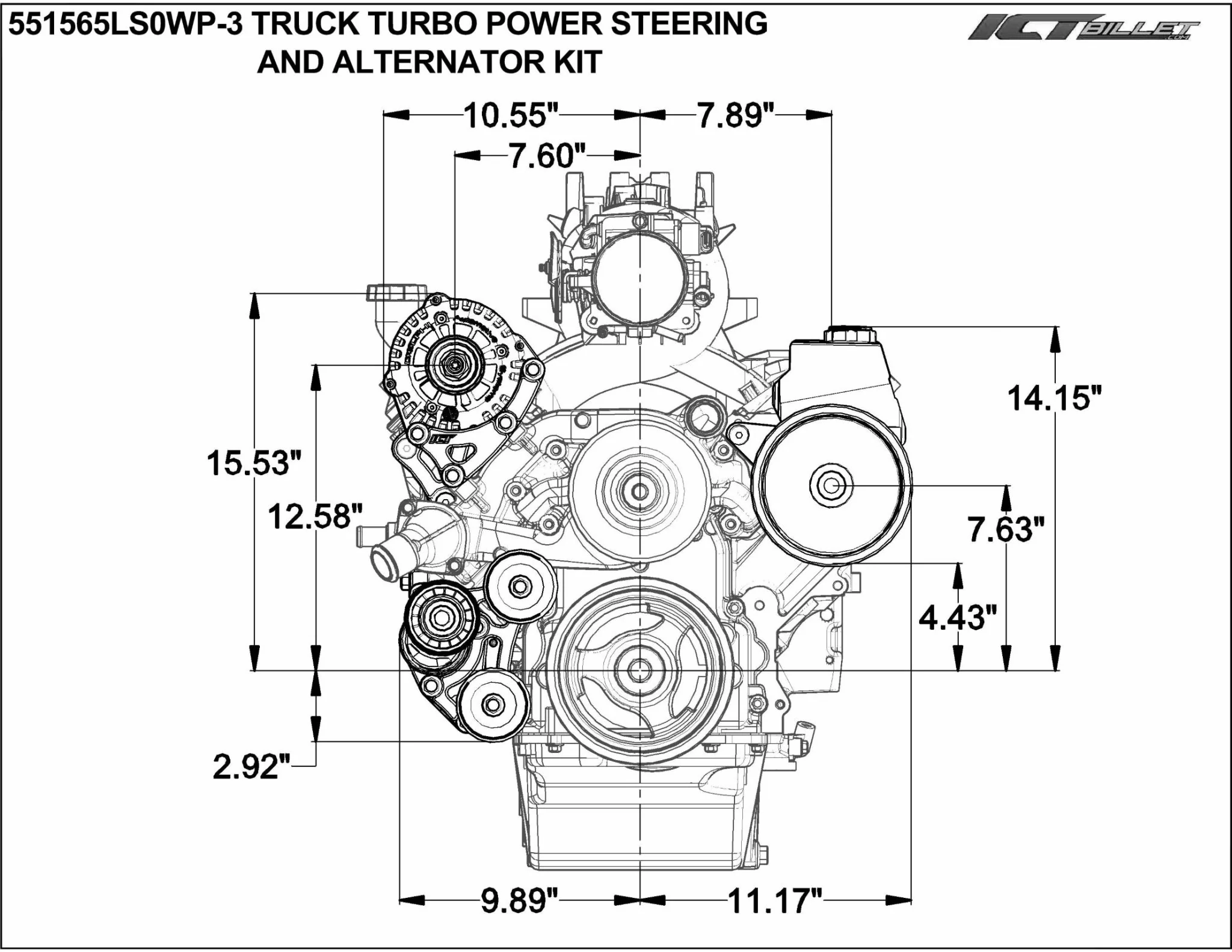

LS Truck Turbo - Alternator / Power Steering Bracket Kit for LS1 LS3 Water Pump

LS Alternator and Power Steering Pump Bracket Kit

with Tensioner for use with LS1 Camaro or LS3 Camaro Water Pumps

• Used for relocating the alternator and power steering pump close to the engine centerline to clear turbo headers
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum. This kit includes USA made belt tensioner, and idler pulleys
• Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
• Compatible with:
  • LS1 ('98-'02) Camaro power steering pump & pulley (ICT# PUM200 and PUL200)
  • Truck (any year) Alternator: (ICT# ALT300)(will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators, or 160 amp LS truck alternators
  • LS1 '98-'02 Camaro water pump (WAT200) (this kit includes water pump spacers) and LS3/L99 Camaro water pump (WAT302-spacers not needed)
  • **Bracket kit not compatible with any other water pump.
• Fits all LS series engines

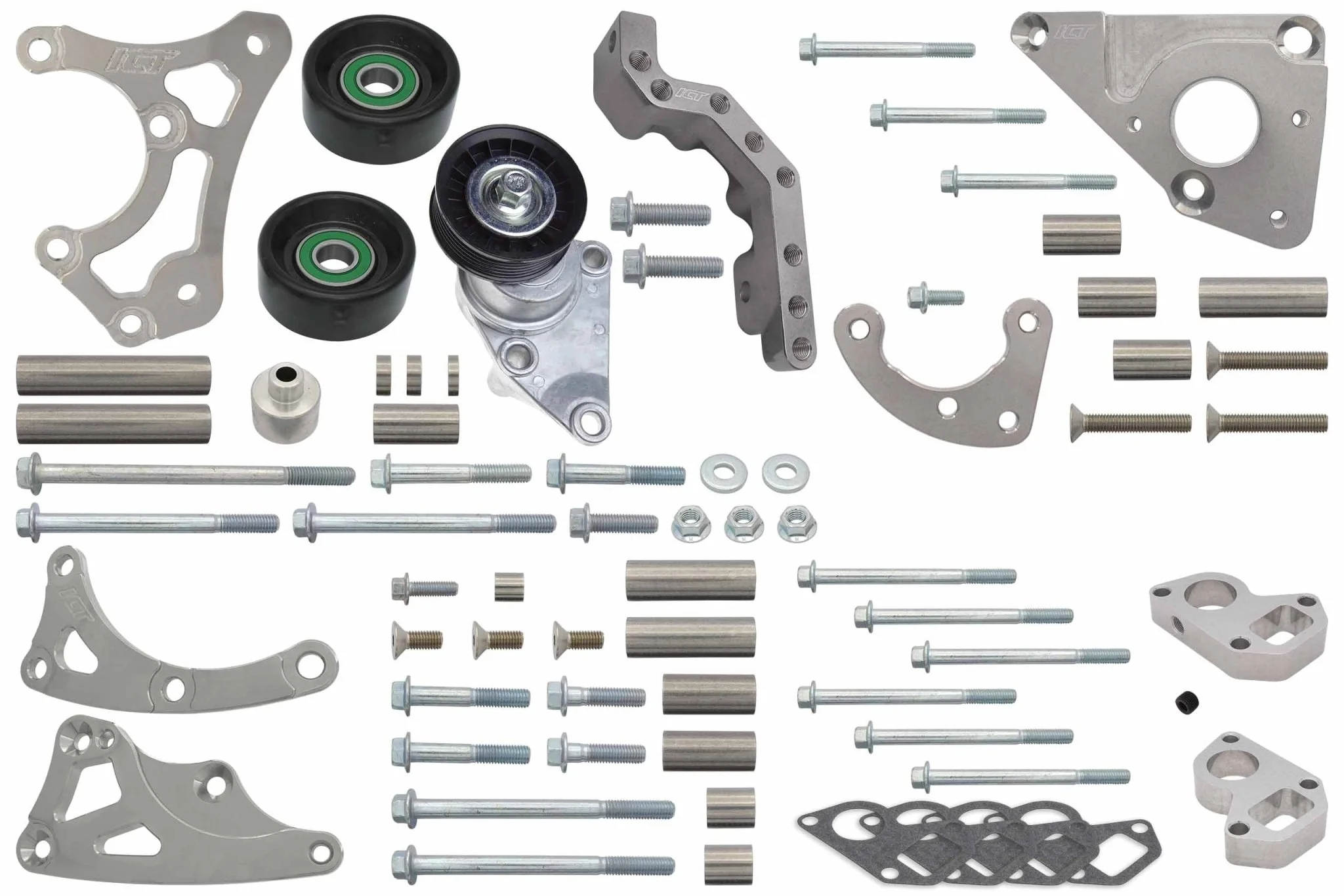

• Includes mounting brackets, tensioner, idlers pulleys, and all mounting hardware
• Not compatible with low mount 4-rib A/C compressor on passenger side.
  • **Please see ICT# 551137-LS76-3 for our compatible low mount 6-rib A/C option
• If using Camaro Intake Manifold and Throttle Body you may need a throttle body rotation adapter (551781) when using with LS3
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
• This kit is made with part #'s 551587-LS01-3, 551581-3, and 551527-LS01-3 bracket kits
• Fits cast or billet turbo oil drain timing covers
