Compatible with (LS1 Camaro to Truck) Water Pump Spacer .7" Adapter Swap kit LSX LS LS2 LQ4 GTO

LS Water Pump Spacer Kit

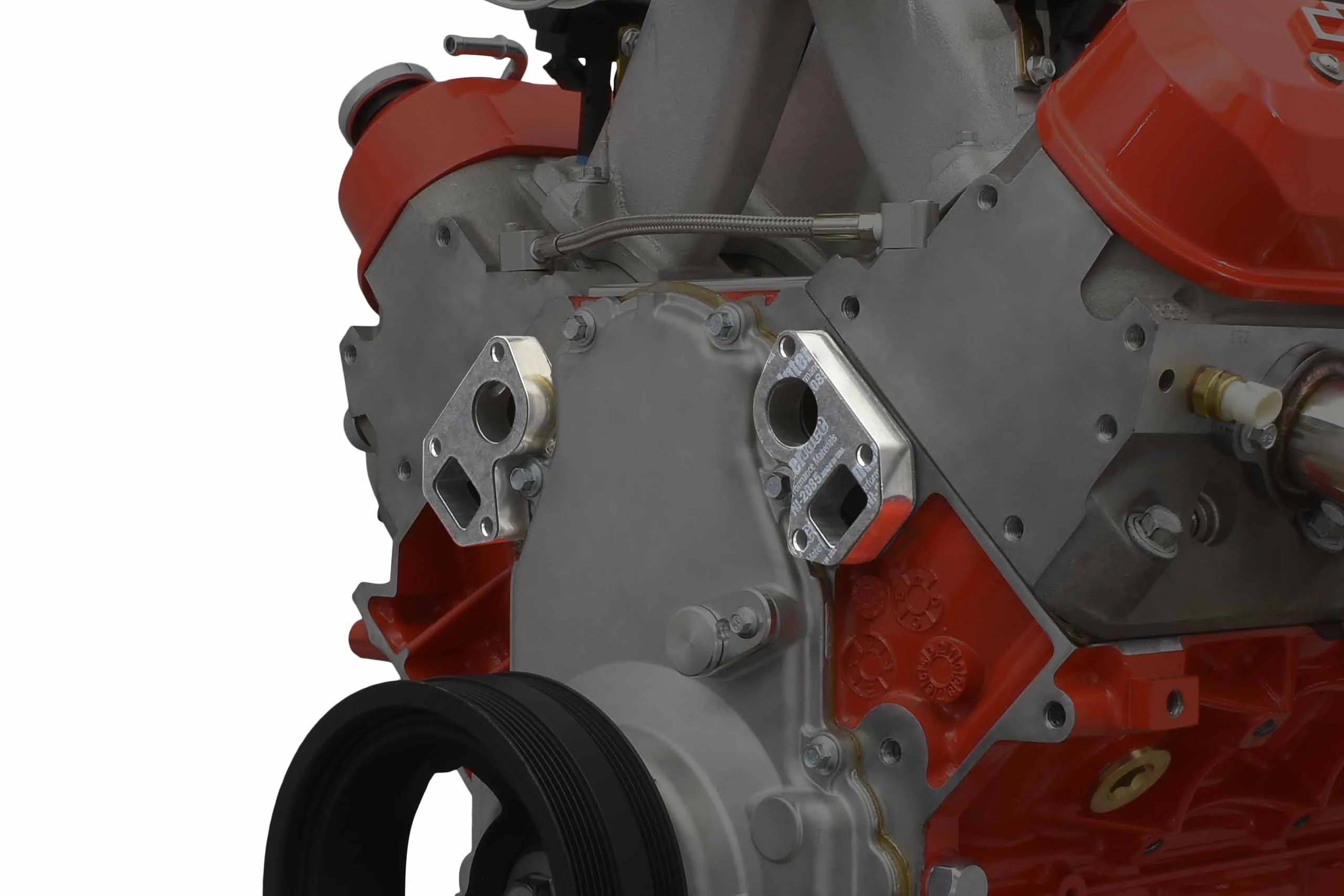

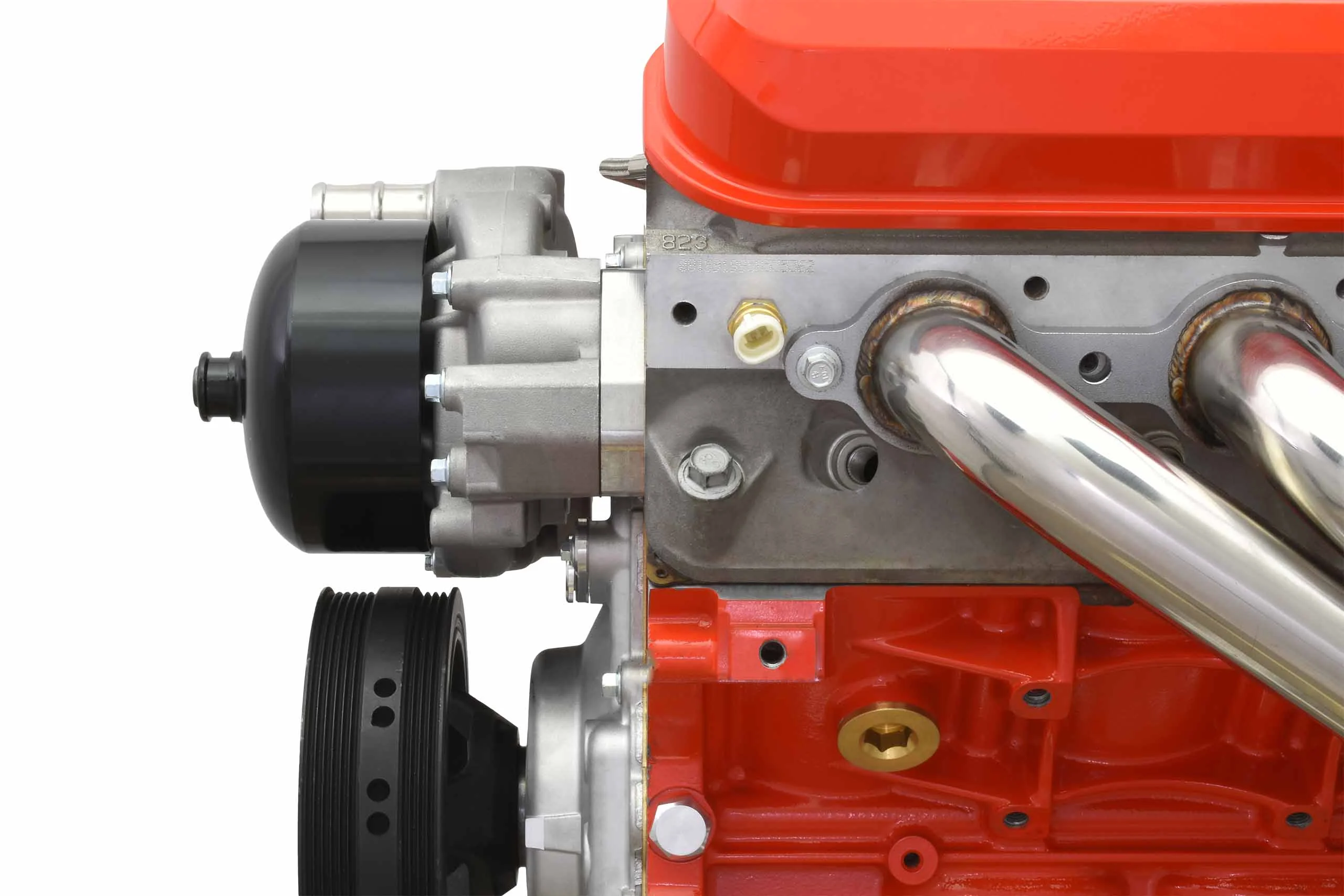

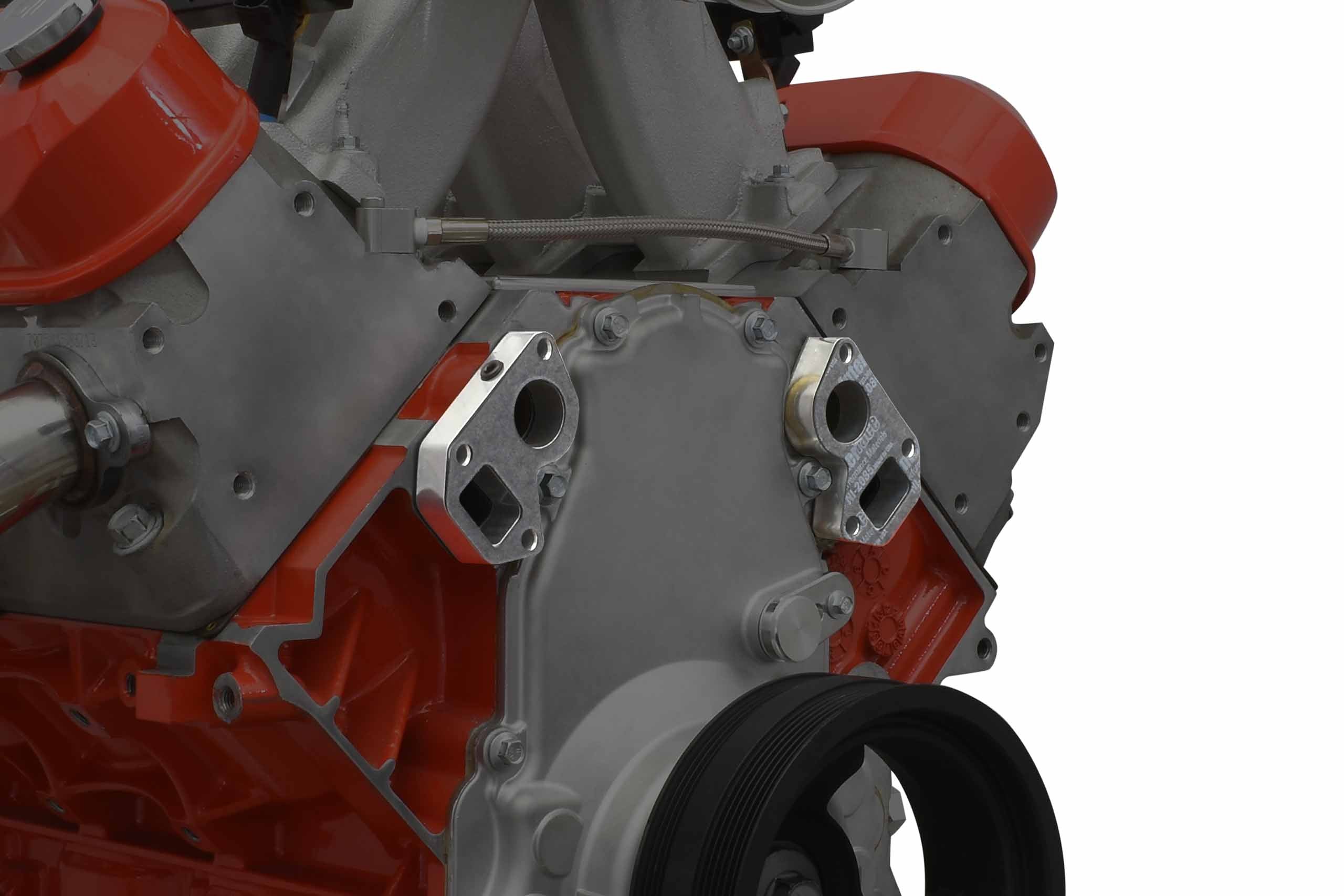

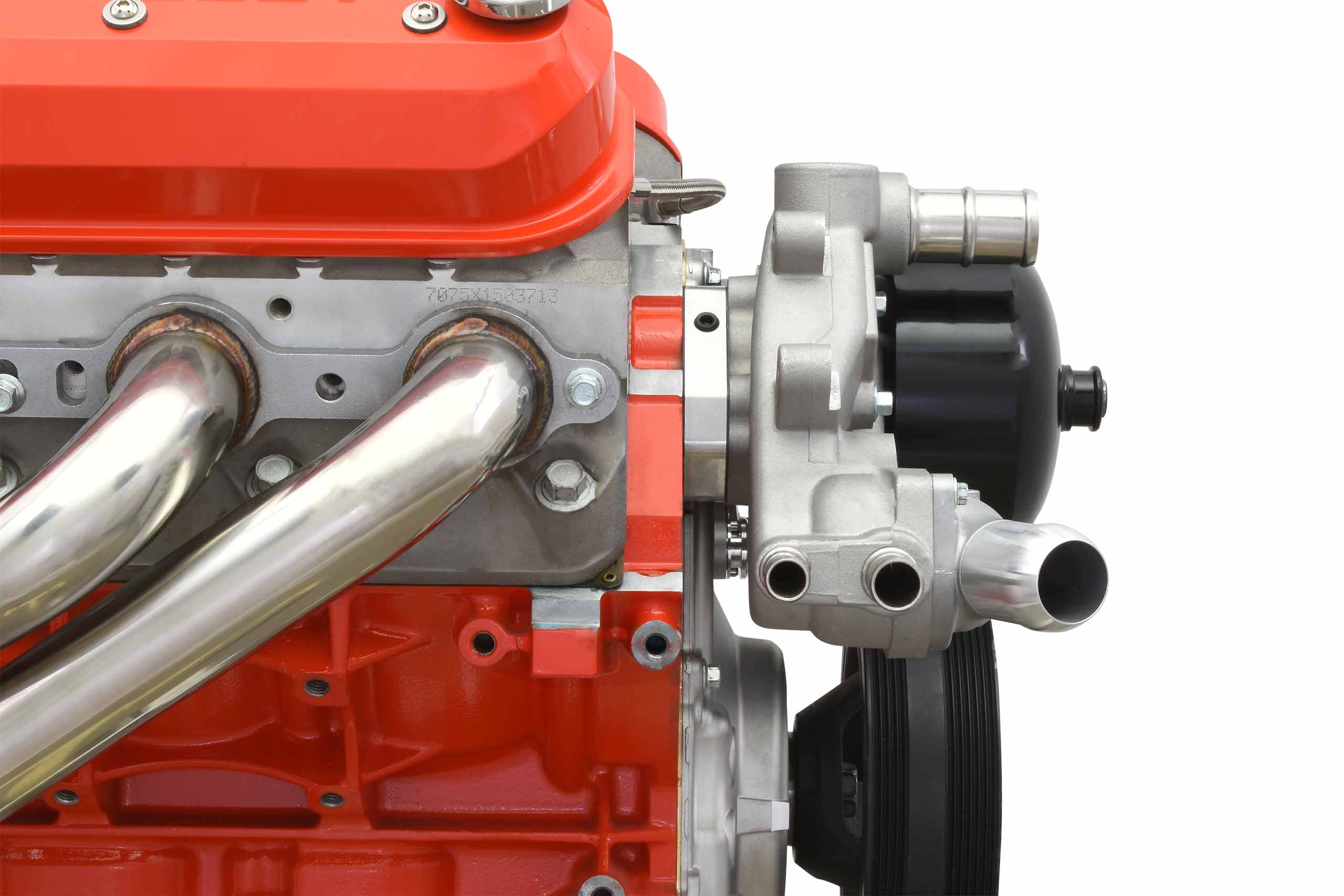

Used for mounting 1998-02 LS1 Camaro (or GTO any year) water pumps onto LS Truck/SUV (any year) engines to keep the belt aligned. This is the EXACT dimension required for this combination.

• Can be bolted to all LS engines, currently running LS Truck (or LS3 Camaro) crank pulley
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum
• Includes: 2 spacers, 4 gaskets, 1 steam port plug (1/8"), and bolts

***always use the belt tensioner that would have originally came with the water pump that you are using. (example: 1998-02 Camaro water pump would use a 1998-02 Camaro belt tensioner) These spacers will keep the alignment perfectly.



LS Series Engine Belt Spacing Guide: Corvette, G8, SS, & CTSV engines have the tightest belt to block setting (other than FWD vehicles w/ LS4) LS1 Camaro belt spacing is approximately .86" further outboard Truck & Camaro 2010up belt spacing is approximately .71" further than LS1 Camaro (1.57" from Corvette)



for replacement gaskets use part number 551690-GAS4
