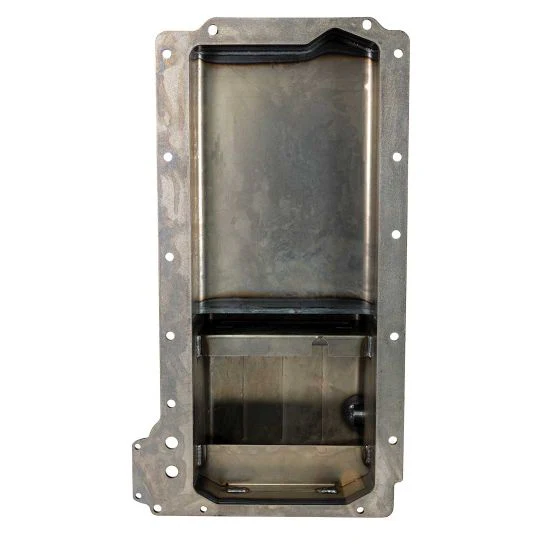

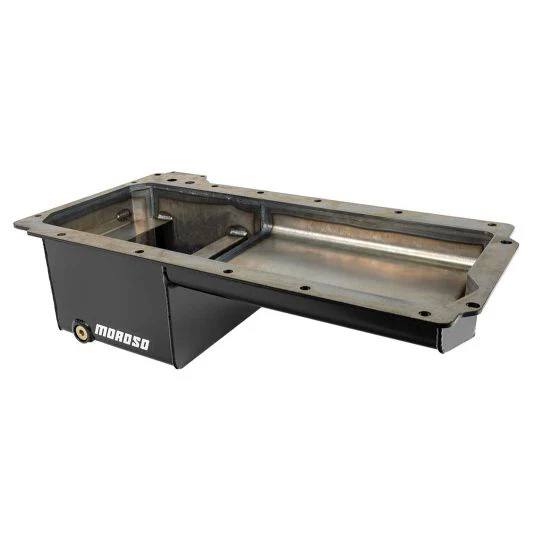

Moroso - LS Swap Oil Pan (may require oil pickup)

Moroso - LS Swap Oil Pan

may require oil pickup tube MOR-24050



Steel, Wet Sump, 5 Quart Capacity, 6" Deep, 8.5" Wide 8.375" Long

Engine Application: GM LS Series

Compatible with: Compatible with: LS Engine Conversions that require Rear Sump (Check Measurements)

• Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc coating
• Fabricated, durable steel construction
• Clears 4.25 stroke with most steel rods
• Front of the oil pan is 1.813 deep to the beginning of the 6 Deep, 8.107" Wide and 8.378" long sump
• Anti-climb baffle

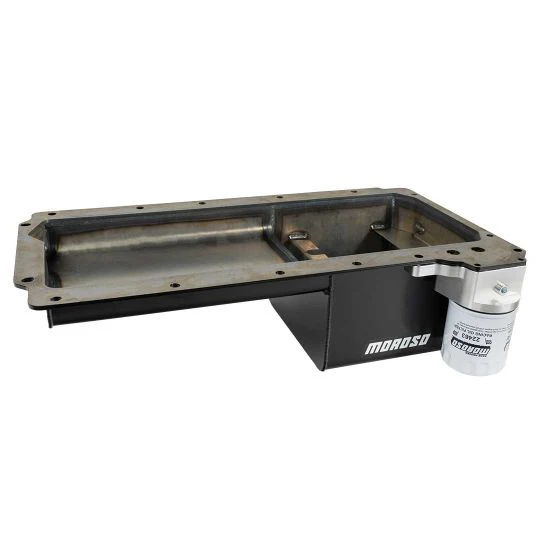

• Features a billet aluminum adapter that allows a 22mm thread Moroso No. 22463 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
• Magnetic drain plug and uses a stock dipstick
• Included billet aluminum oil filter adapter has a 1/4" N.P.T. sensor port

Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Impala   65-70
