PRW - LS Flexplate w/ Bolts LS1 700R4 Swap Flywheel SFI 10.75" 11.06

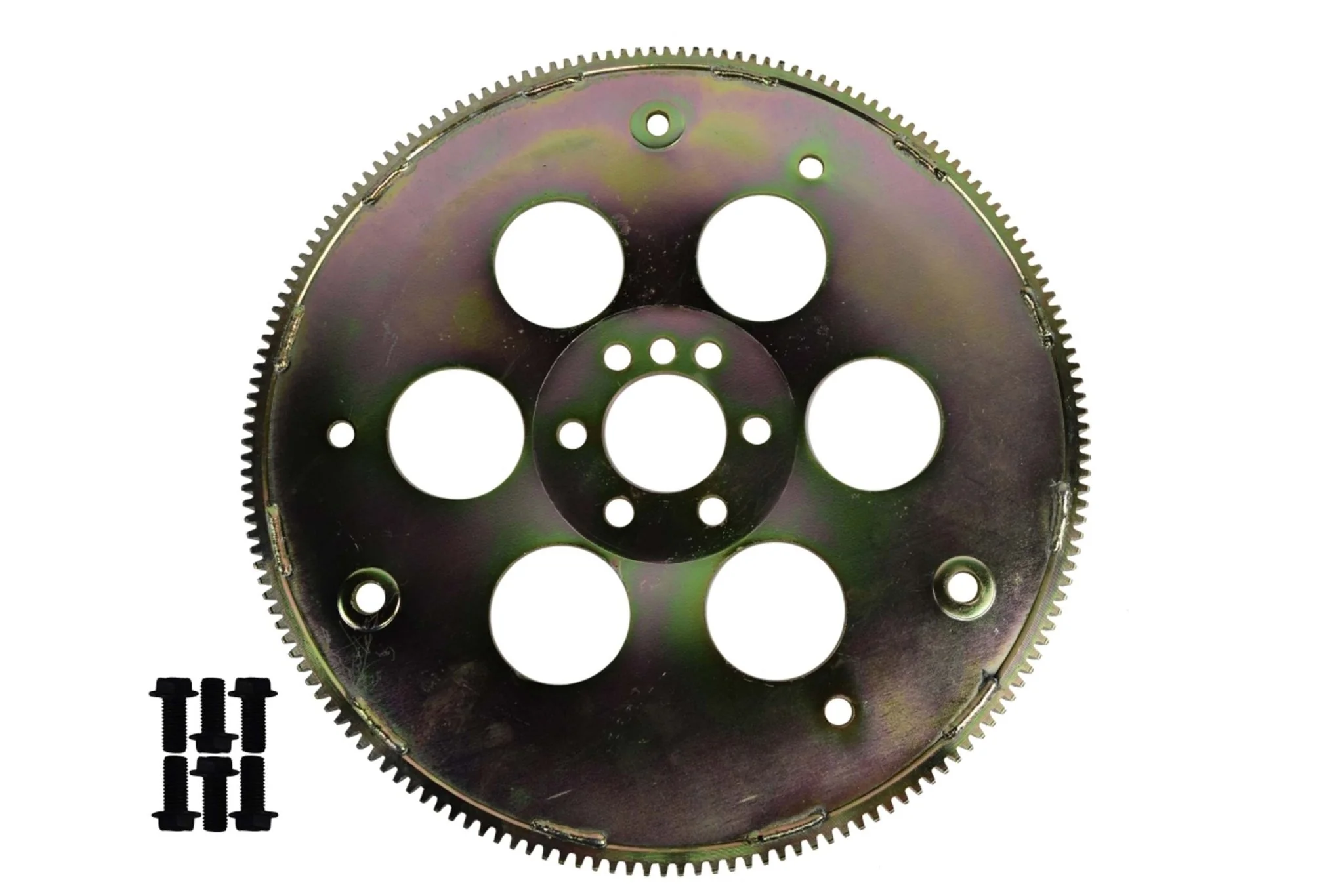

LS Heavy Duty Steel Flex Plate

*** This flexplate is not compatible with TH400, and 4l80E transmissions, you will need our part number 551356X***

• SFI 29.1 certified
• .035 inch thicker than factory flex plate
• Includes 10.75" & 11.06 torque converter bolt patterns.
• Compatible with Powerglide, TH350, 700R4, 4L60e transmissions for LS series engines
• 168 teeth. 0.210" thick steel construction
• Will require torque converter spacer part number 51165 for NON LS transmissions
• Includes: 1 flex plate, 6 flex plates bolts

Common torque converter bolt patterns: 10.75" fits Powerglide, TH350, 2004R, 700R4, 4L60, (SBC & Non LS with 4L60E), 11.06 (LS & 4L60E with LS engine)

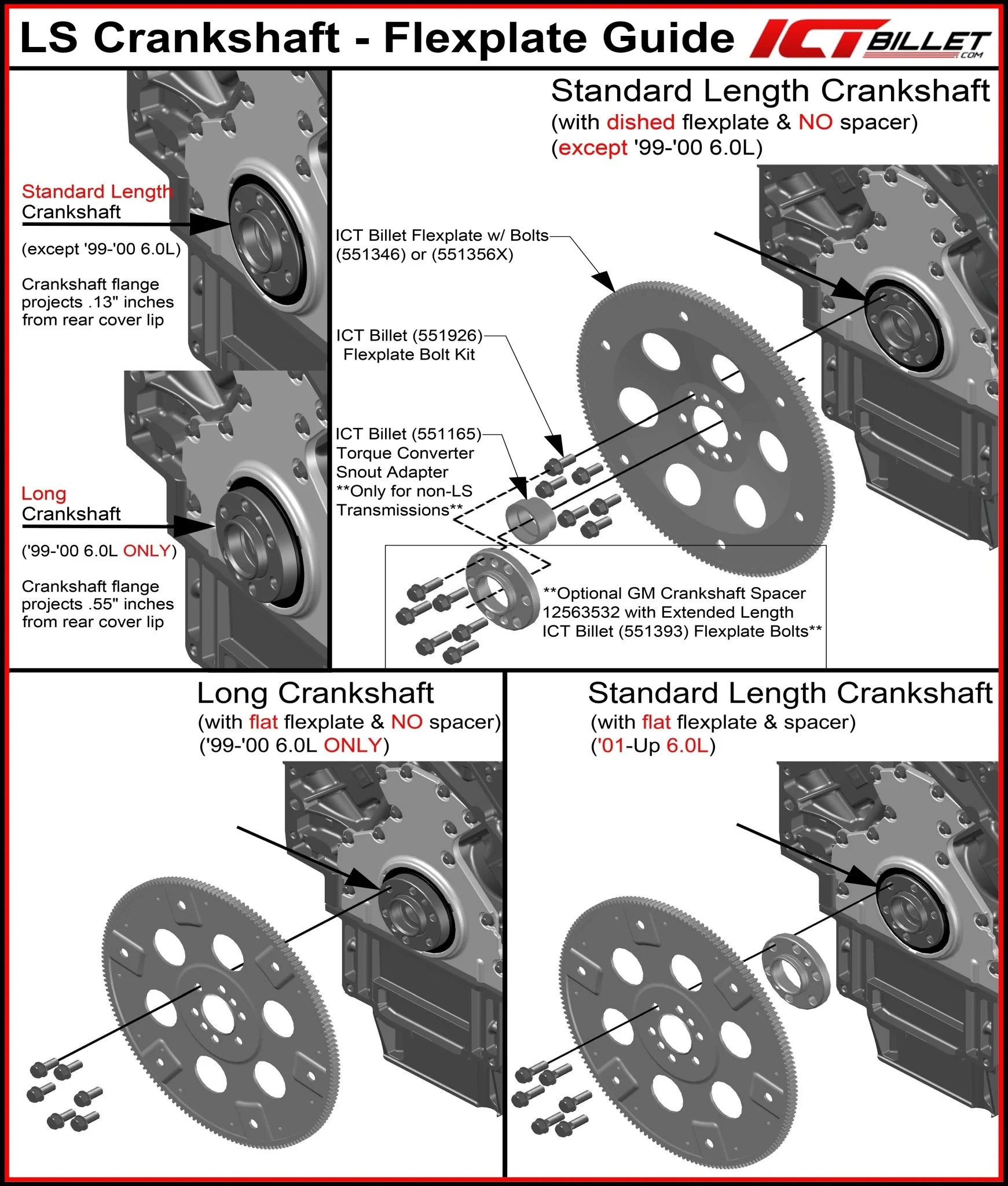

(Will not fit 1999-2000 6.0L engines or LSA/LS9 (8 bolt flywheel). These years have extended length crankshaft flange and will NOT fit.)
